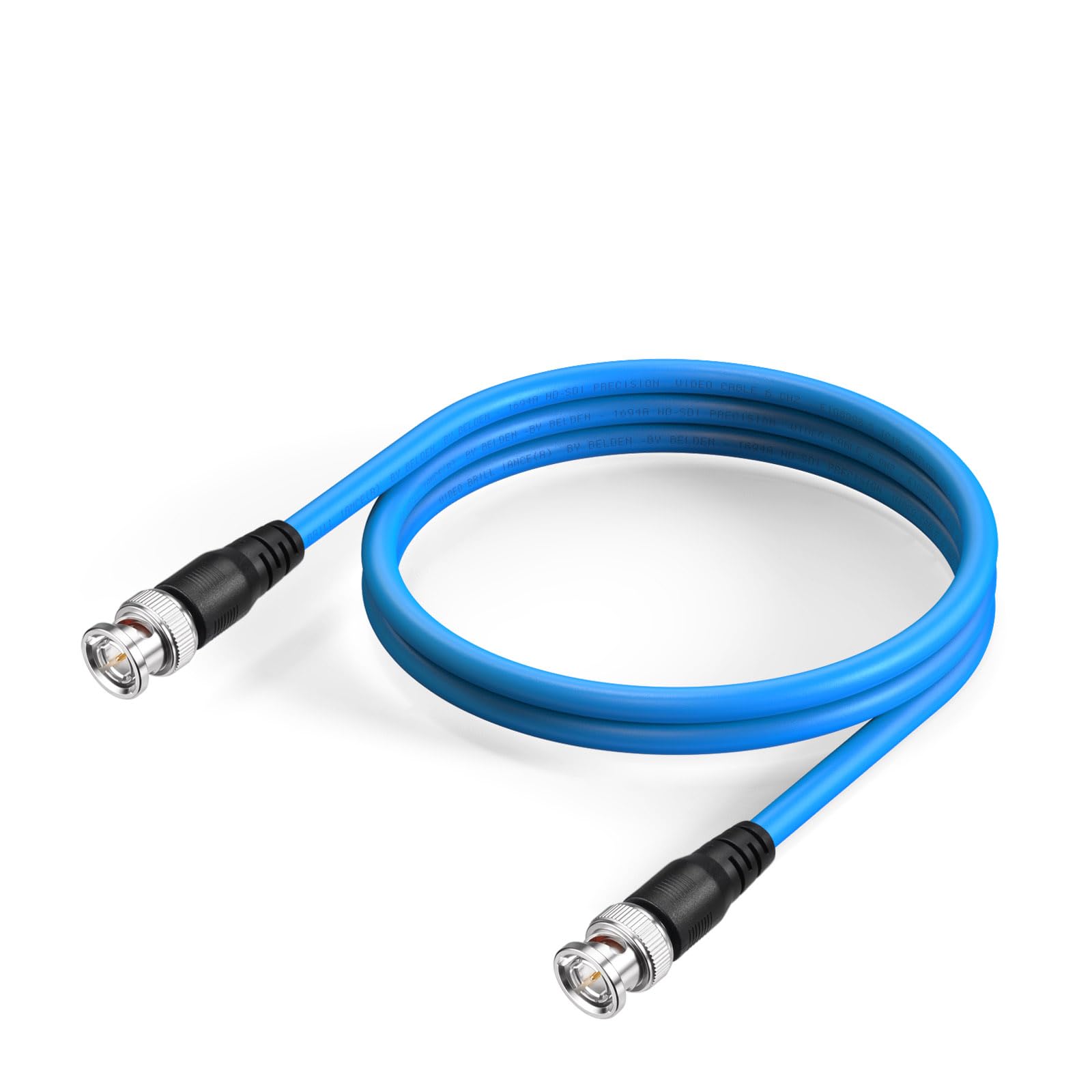

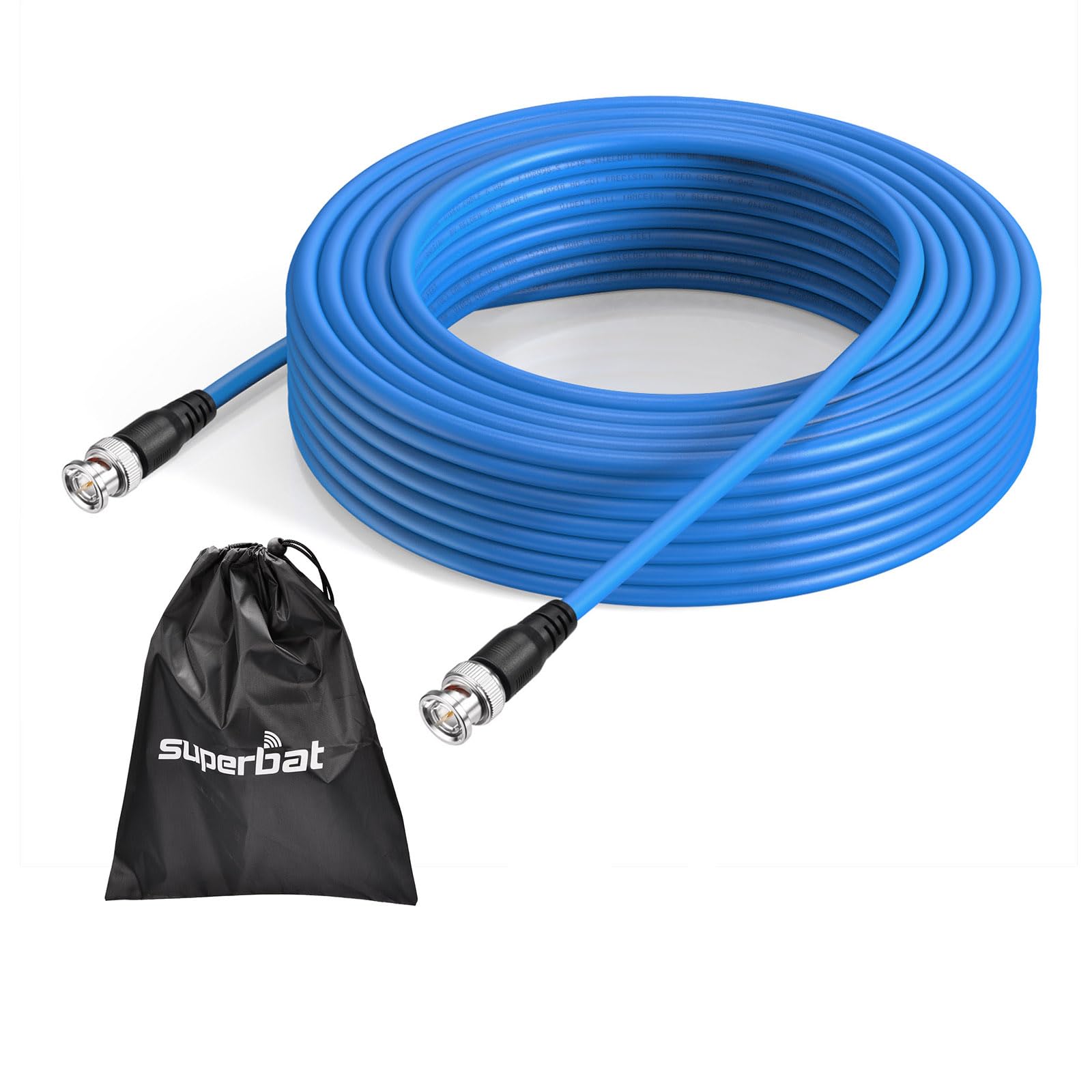

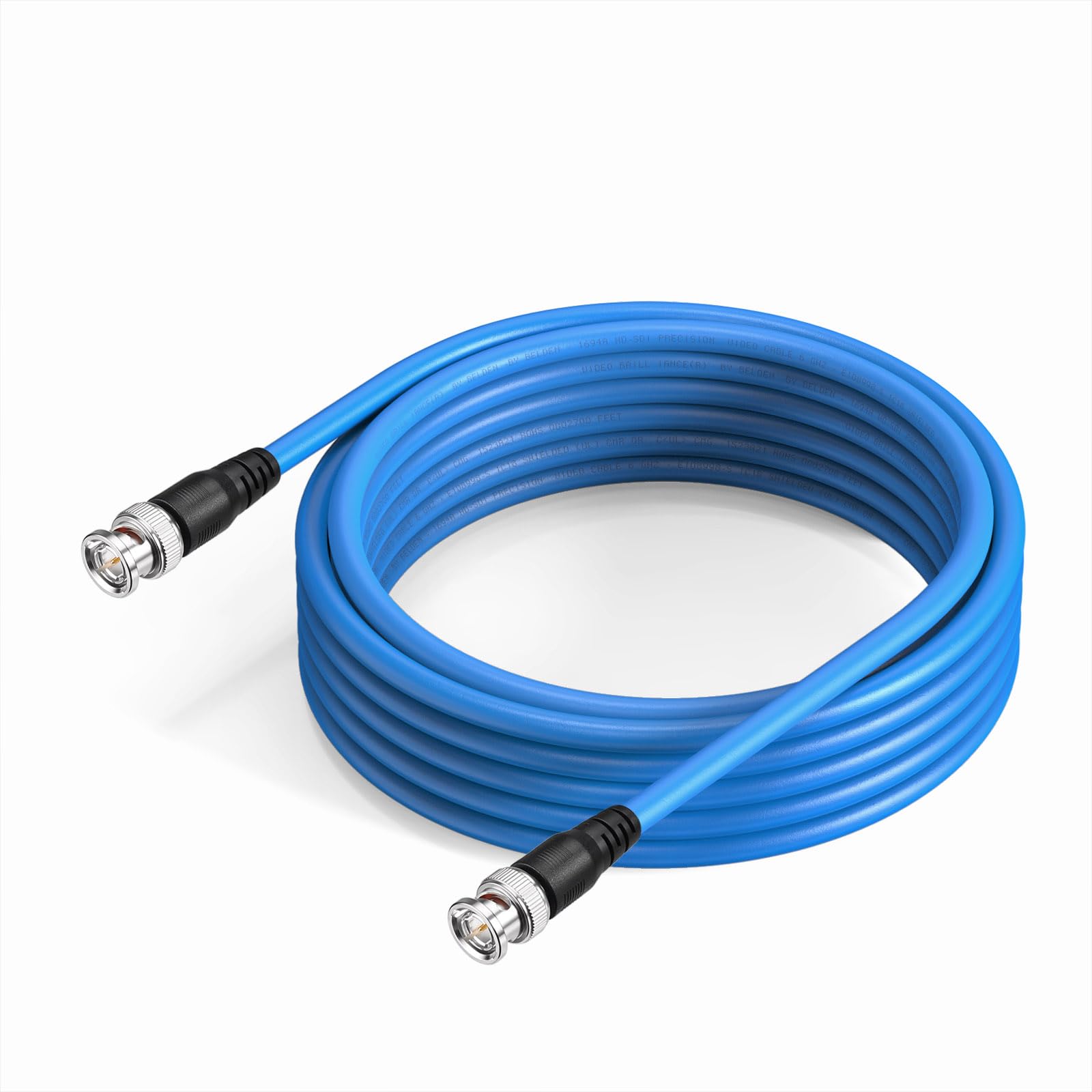

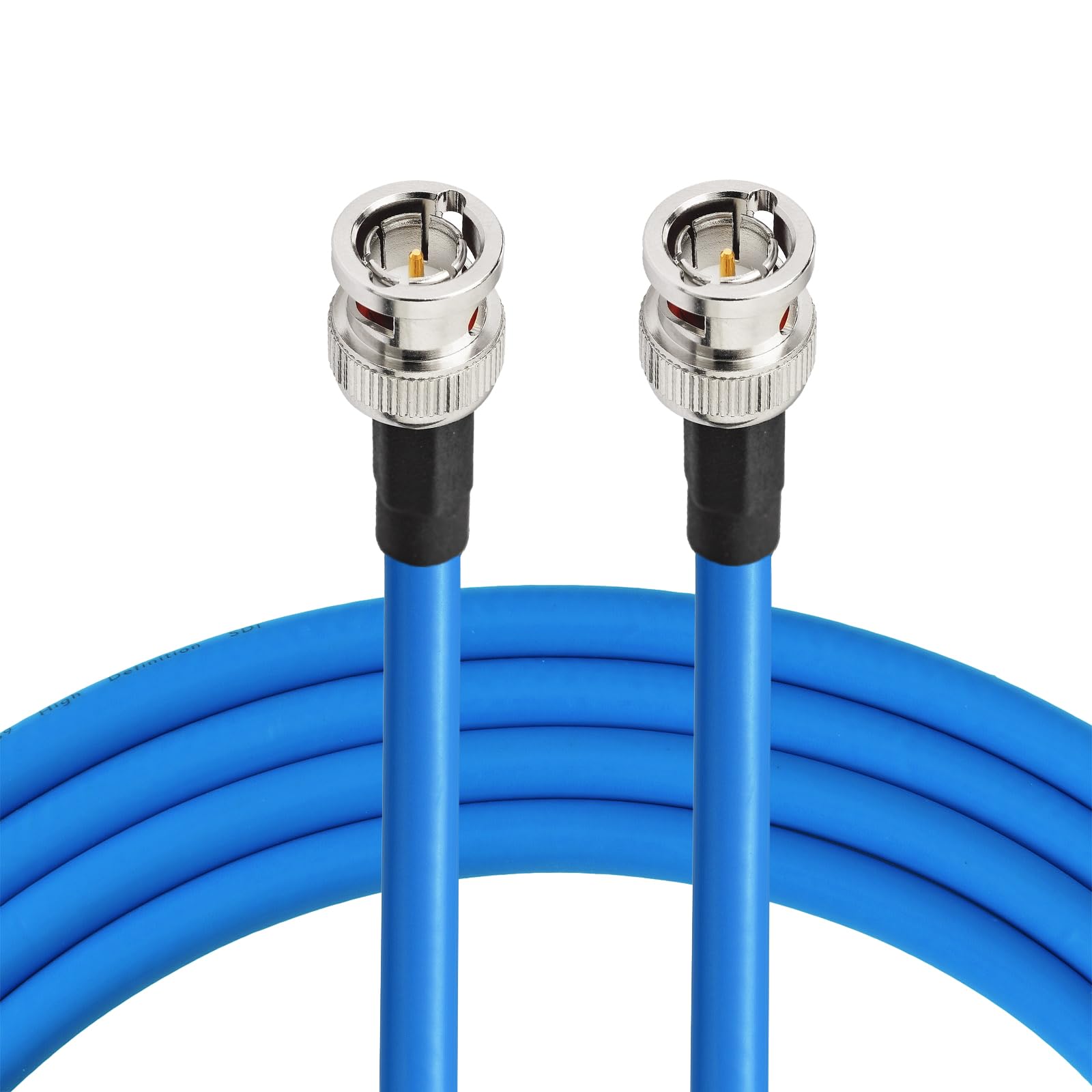

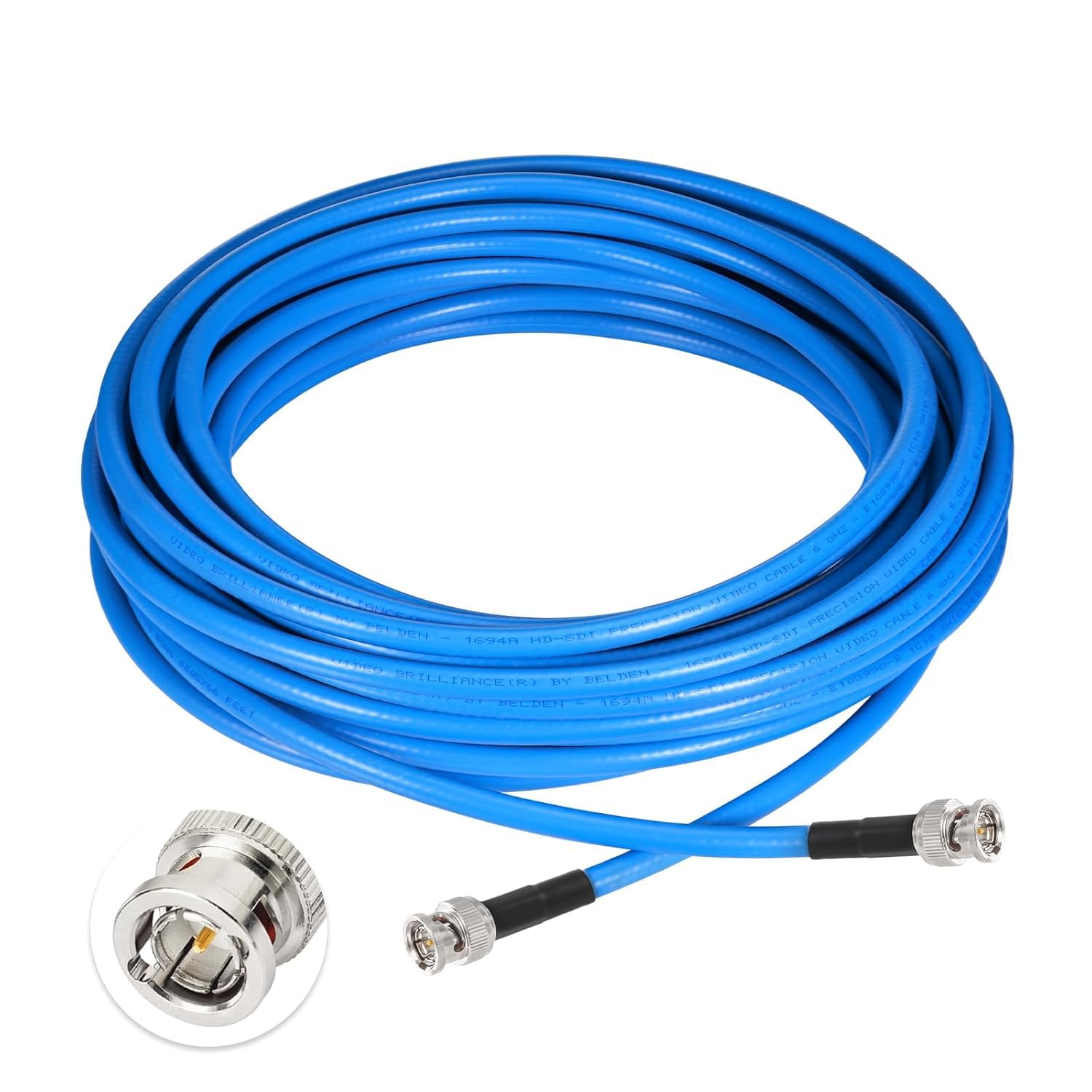

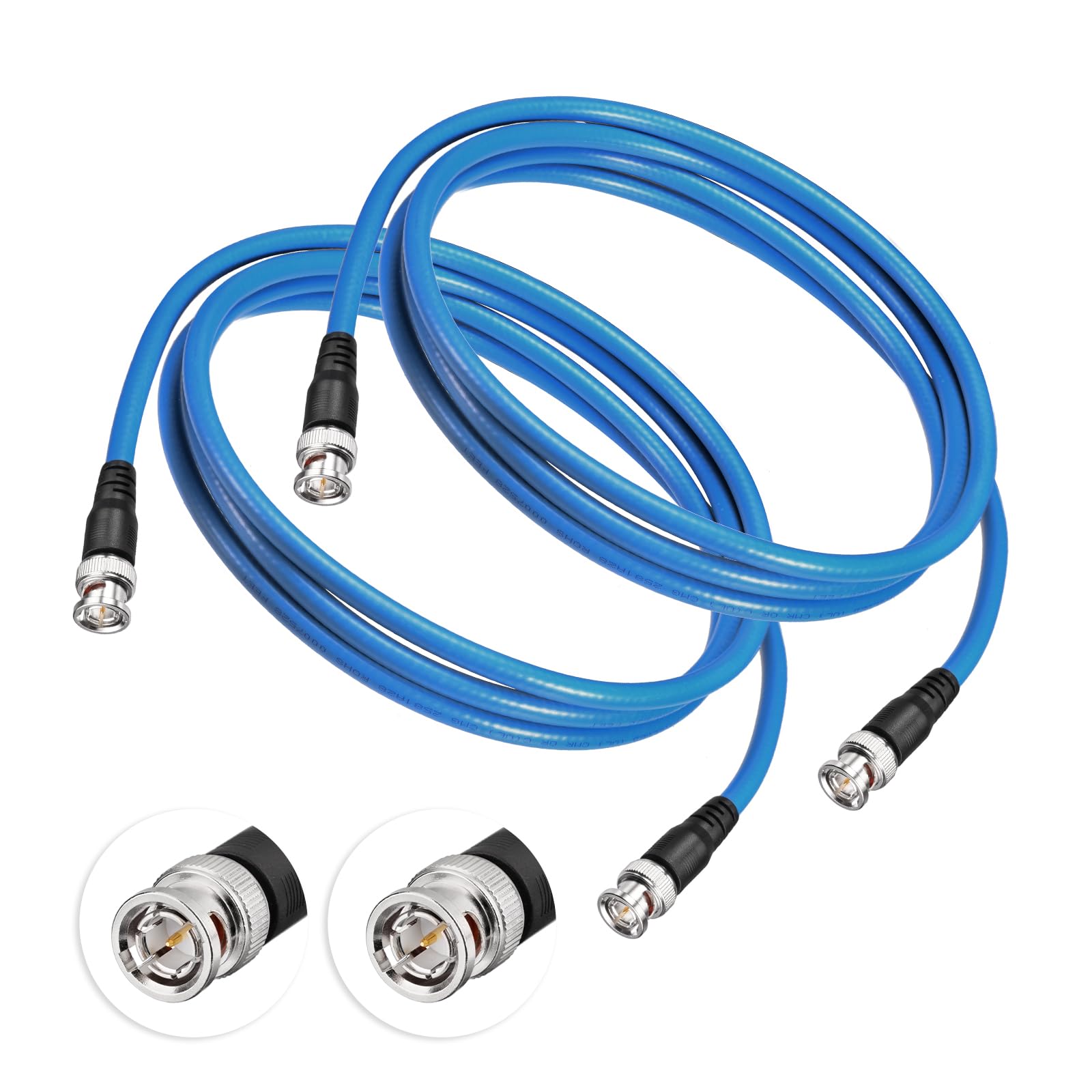

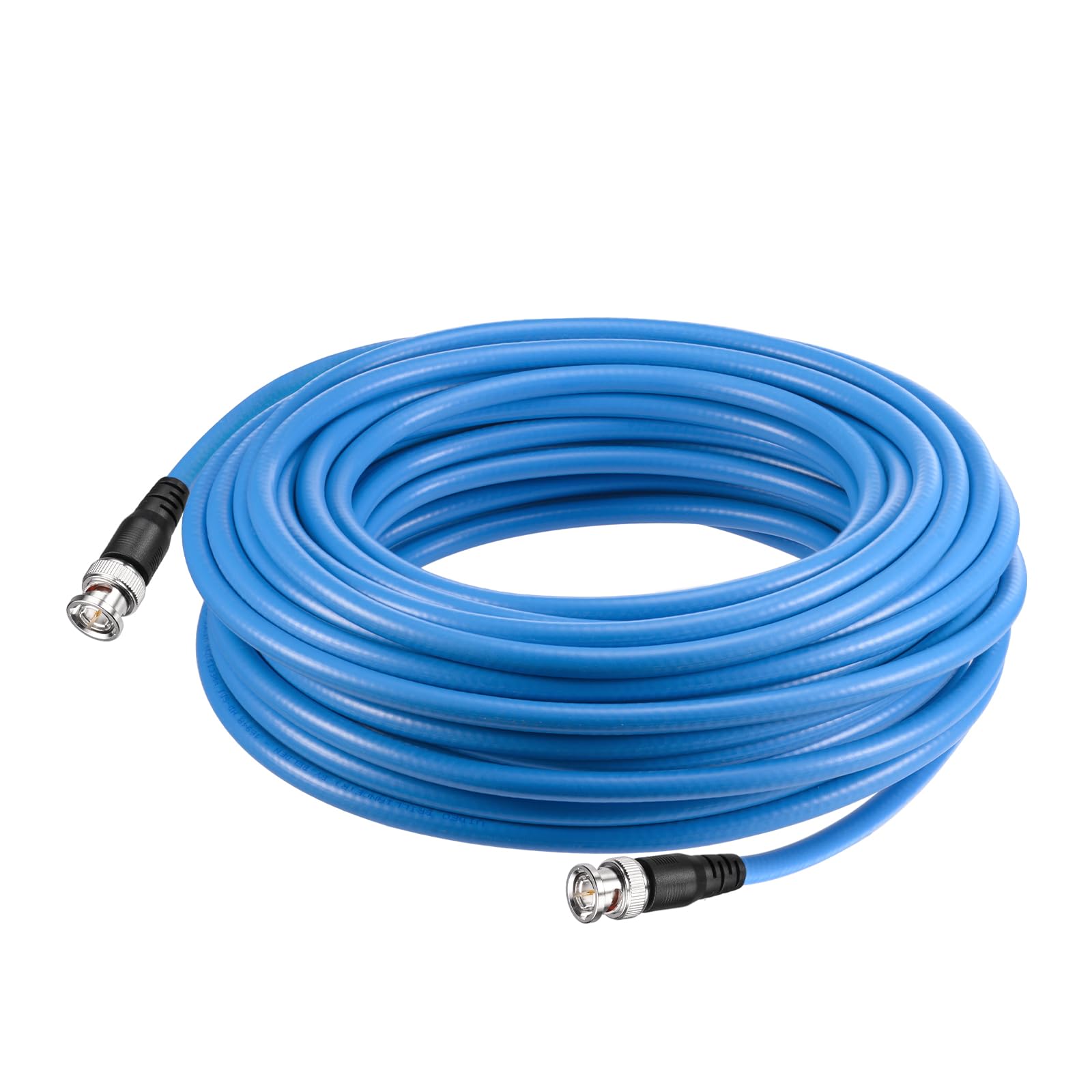

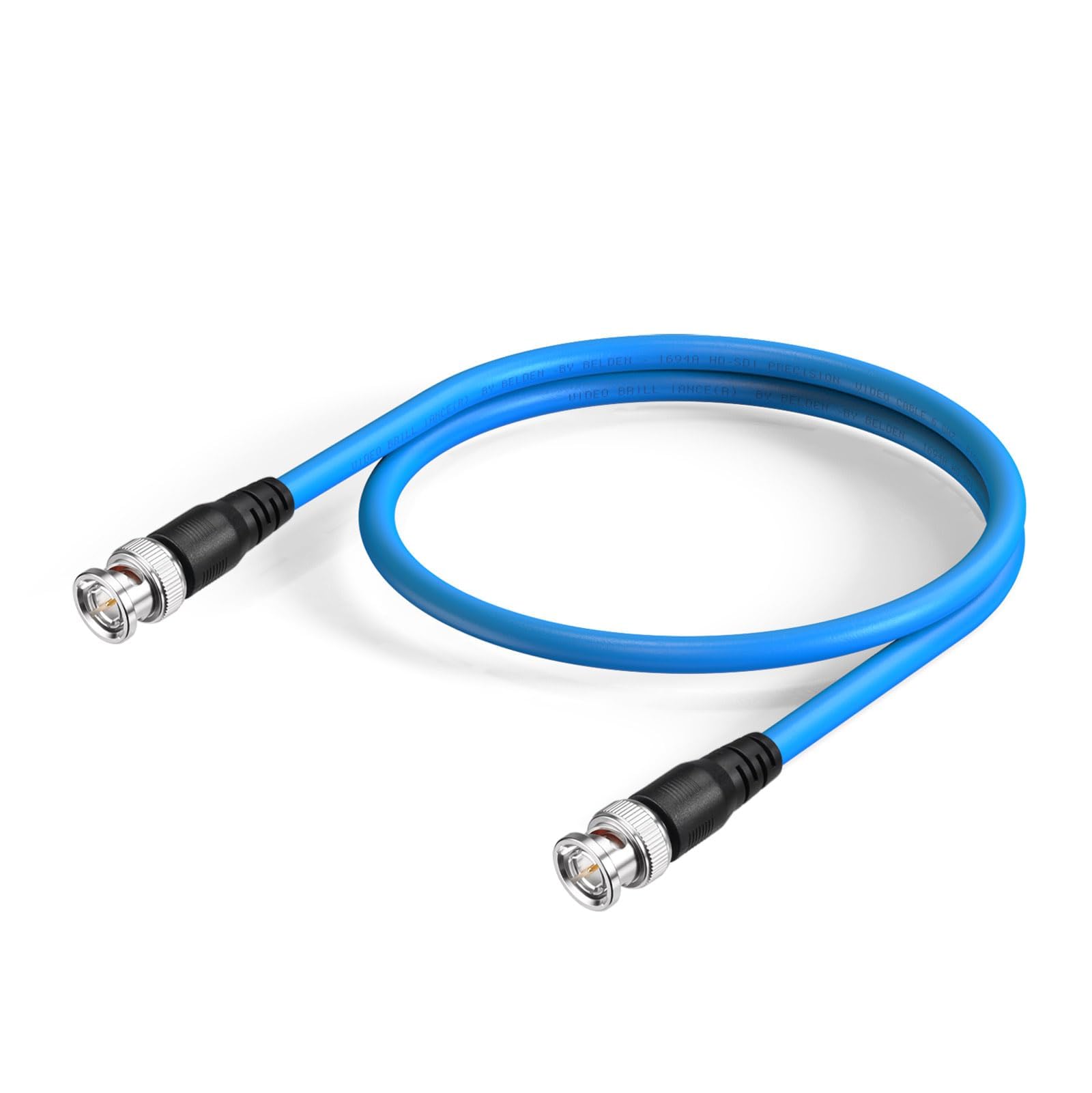

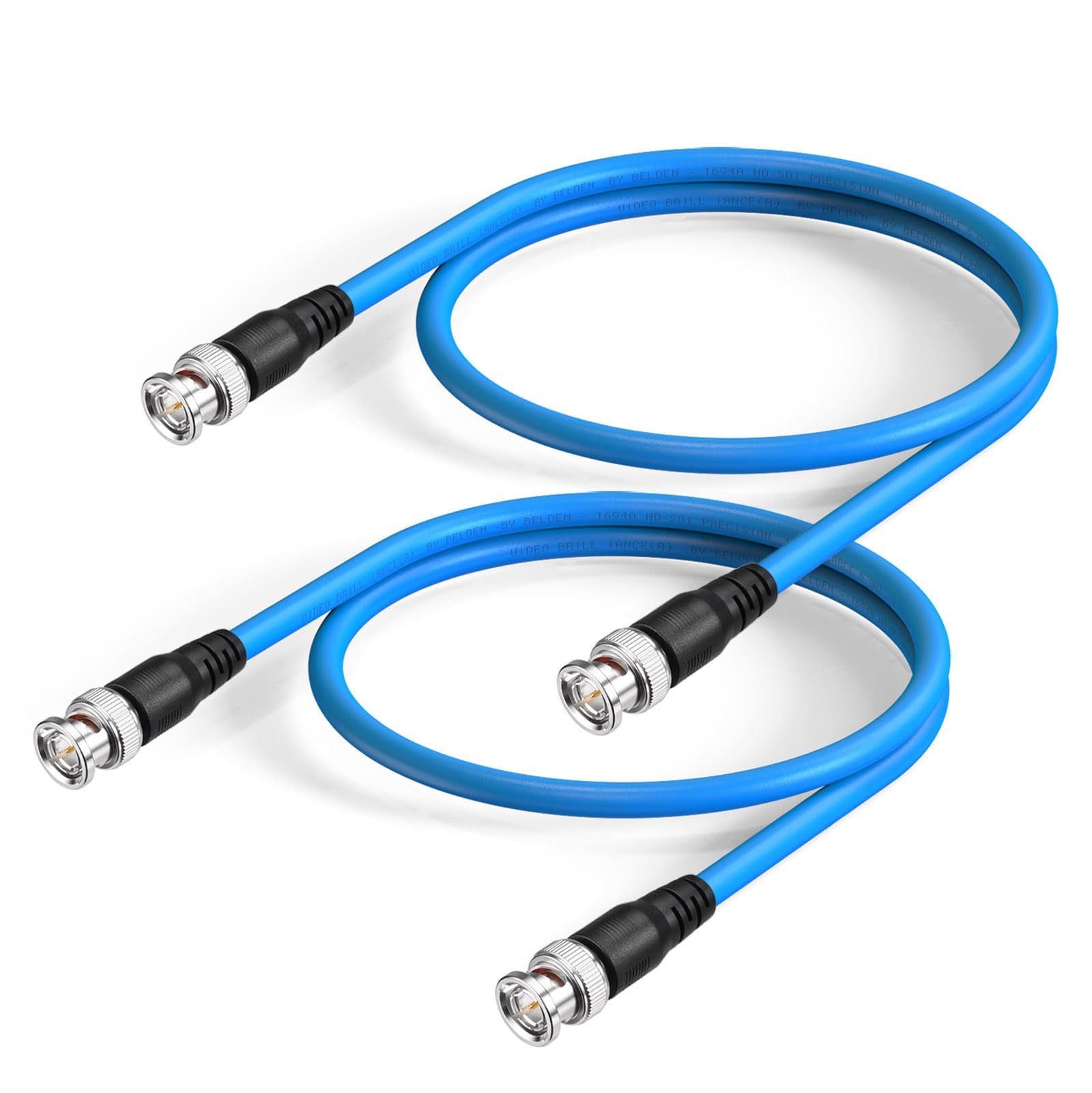

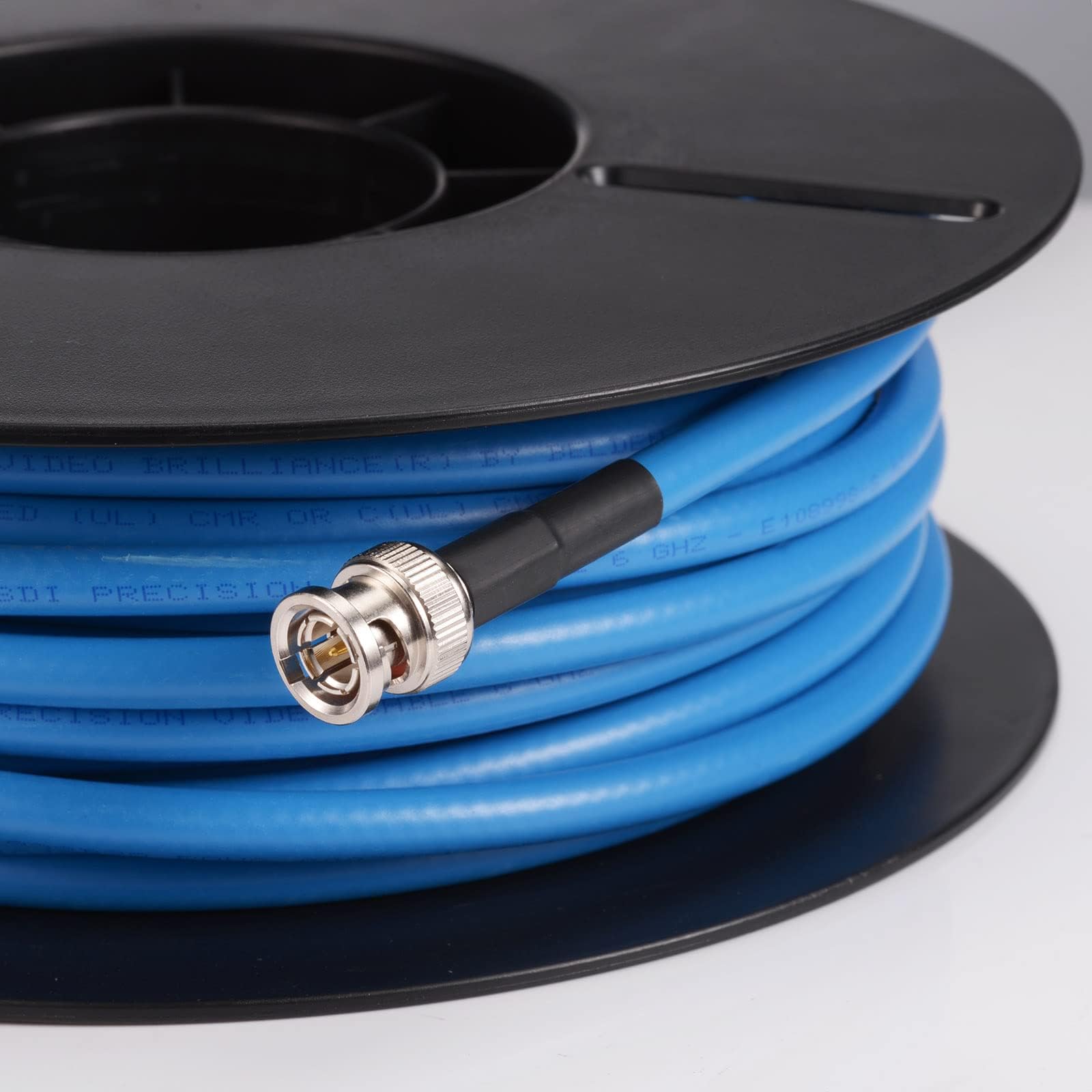

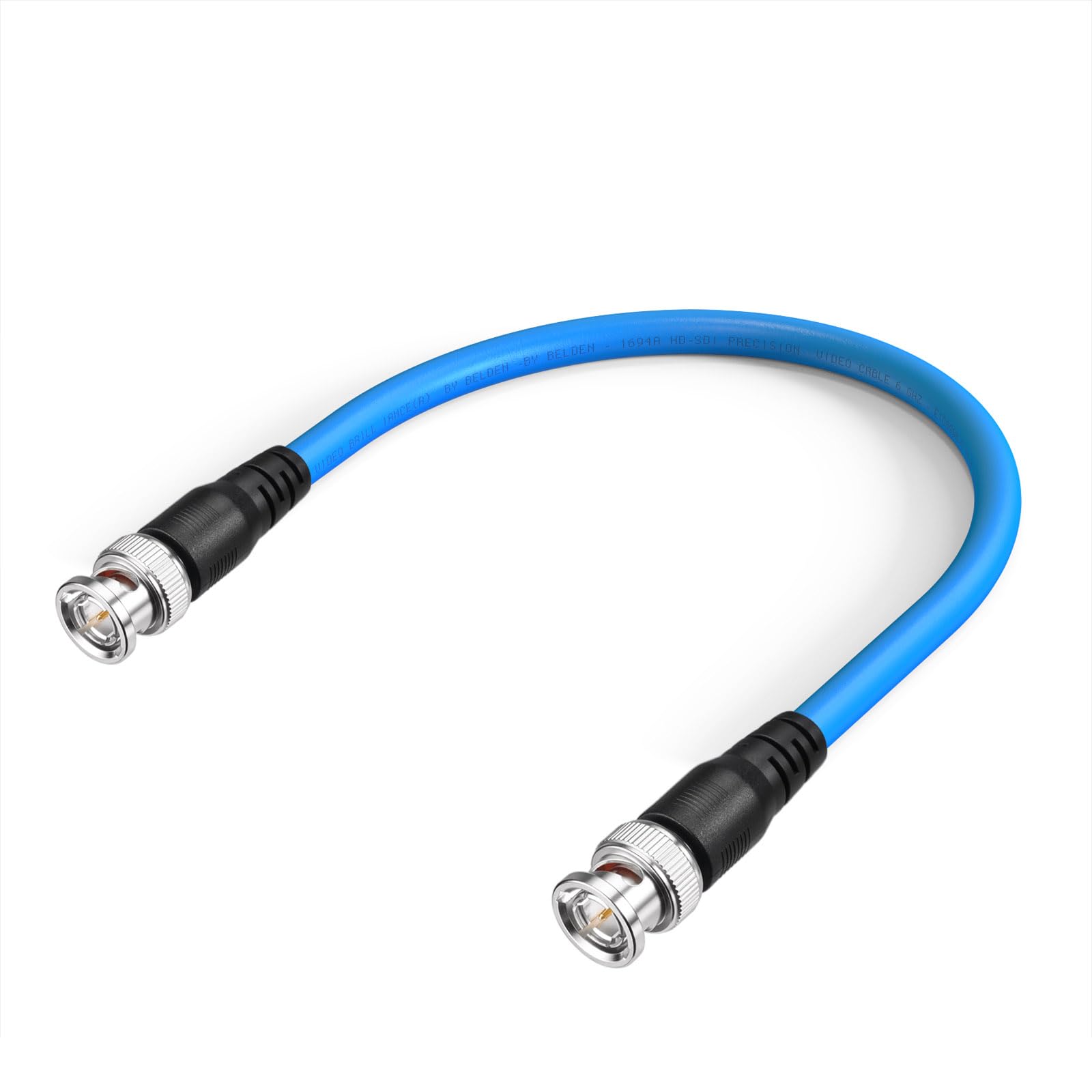

Superbat SDI Cable BNC Cable 3G/6G/12G (Belden 1694A)，10FT/15FT/30FT/50FT/100FT/200FT,Supports HD-SDI/3G-SDI/4K/8K，SDI Video Cable Precision Video Cable(1Pcs)
50ft / No Cord Reel
3.480 BD
Prix promotionnel
3.480 BD
Prix régulier
23.230 BD
Passer aux informations sur le produit
Superbat SDI Cable BNC Cable 3G/6G/12G (Belden 1694A)，10FT/15FT/30FT/50FT/100FT/200FT,Supports HD-SDI/3G-SDI/4K/8K，SDI Video Cable Precision Video Cable(1Pcs)
3.480 BD
Prix promotionnel
3.480 BD
Prix régulier
23.230 BD
Expédition calculée lors du paiement.

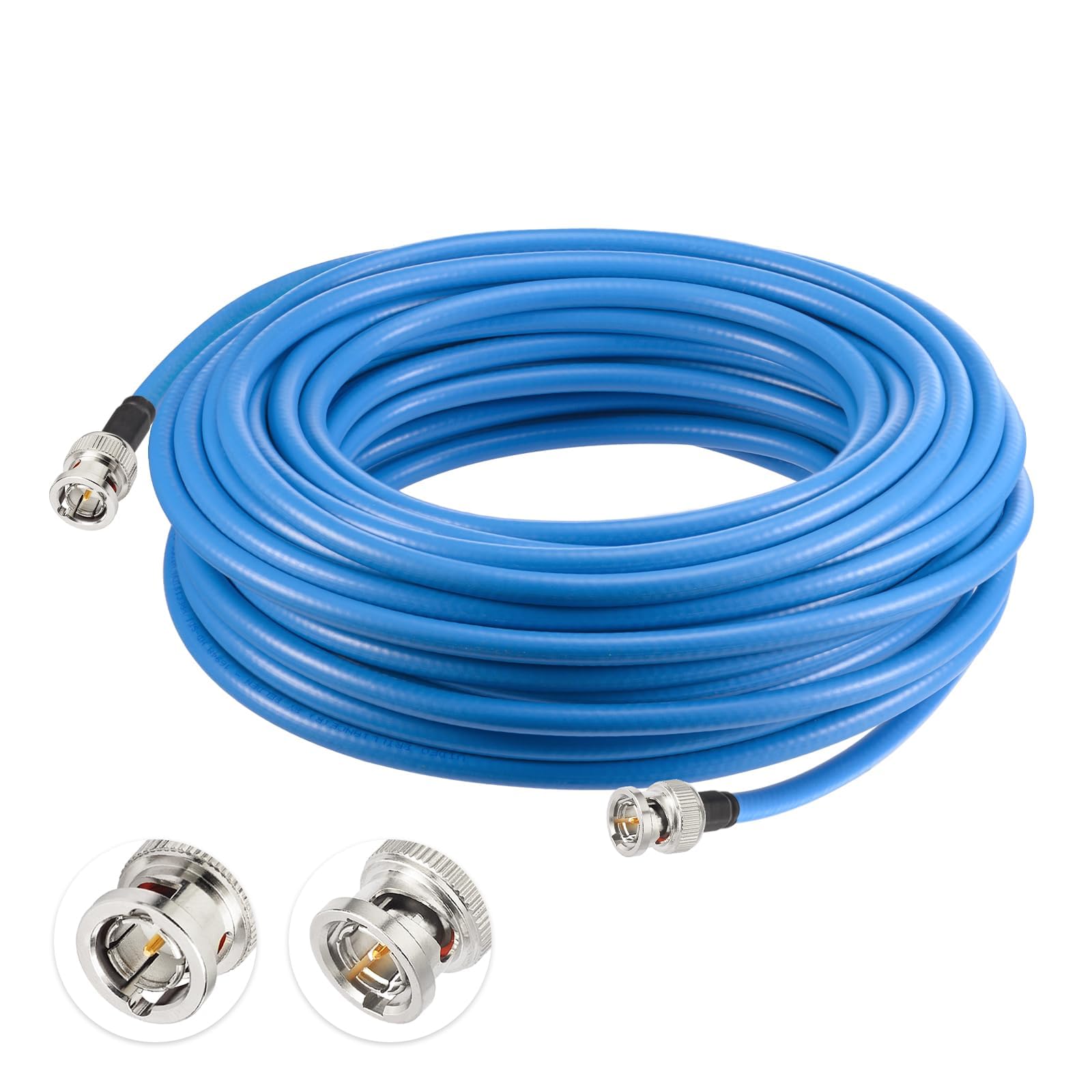

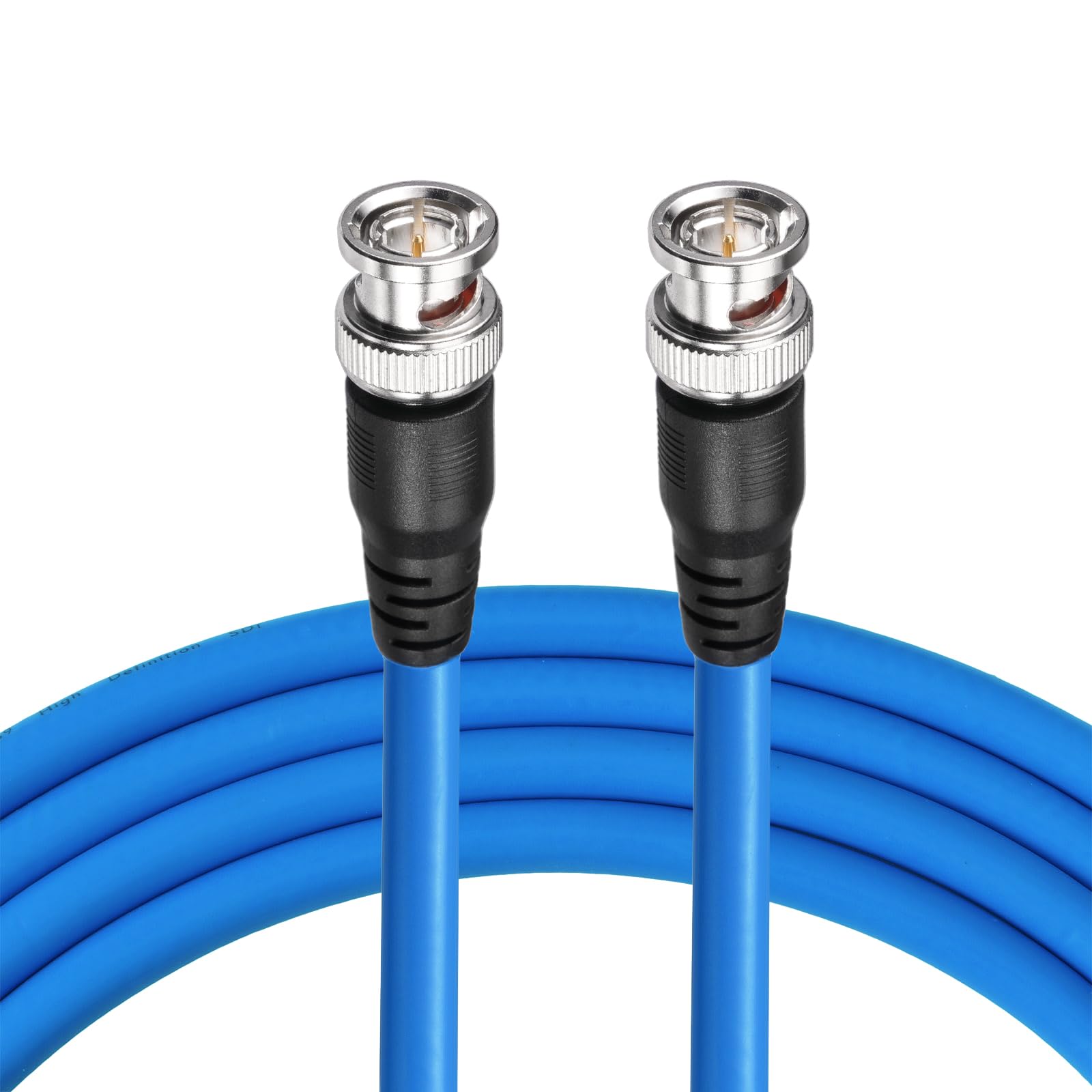

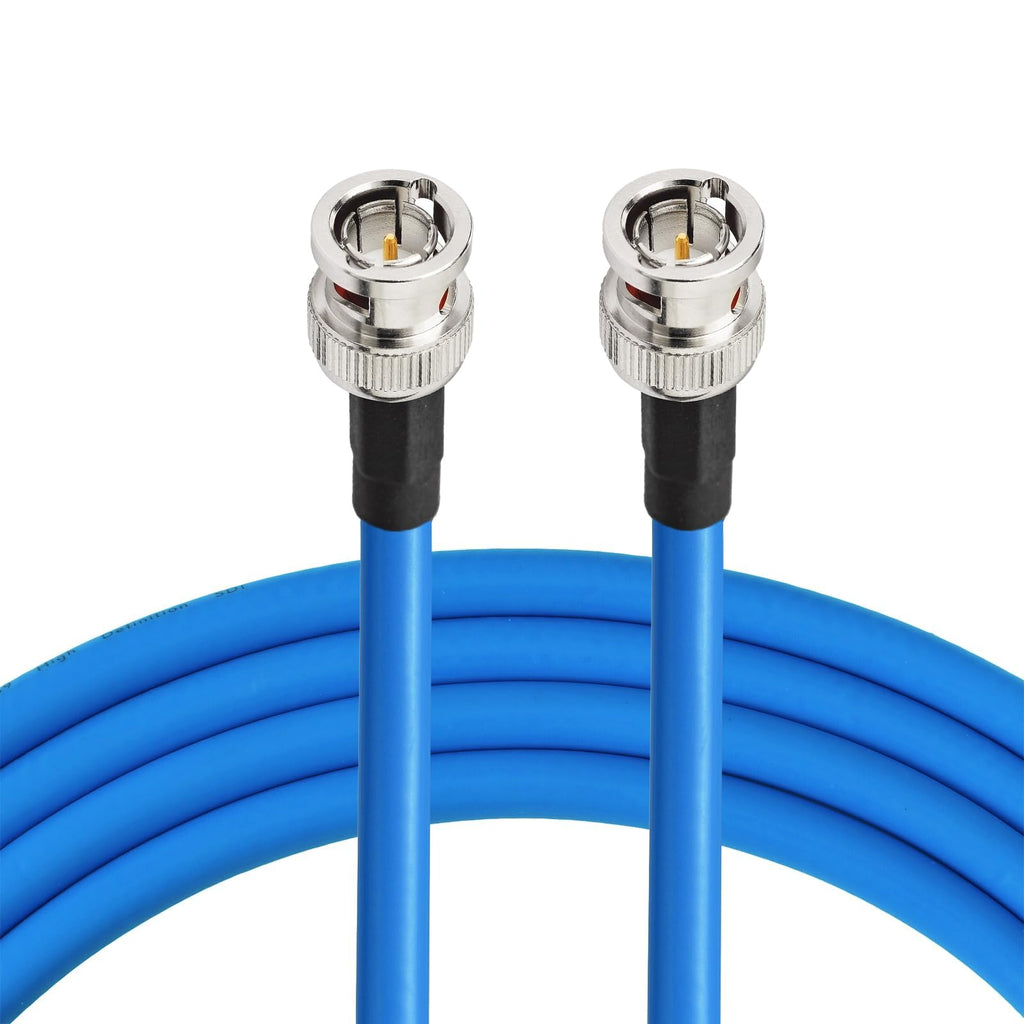

3G/6G/12G/HD-SDI Cable BNC to BNC Digital Video Cable(Belden 1694A )
Features and Specifications:
- Nominal impedance: 75 ohms-ideal - for audio and video
- Velocity of propagation: 82%
- Capacitance: 16.2 pF/ft.
- Nominal attenuation: 0.240 dB/100 ft. @ 1 MHz
- Overall diameter: 0.274".

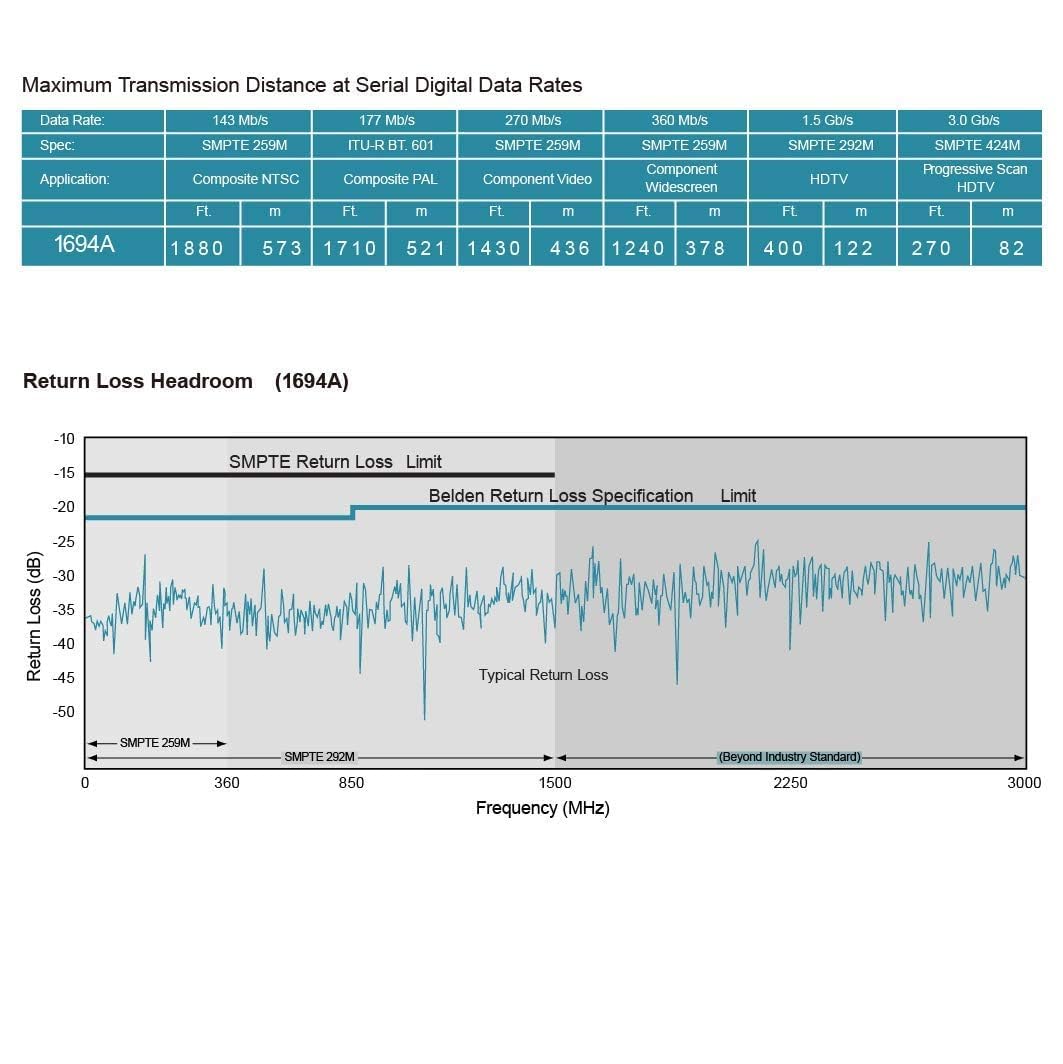

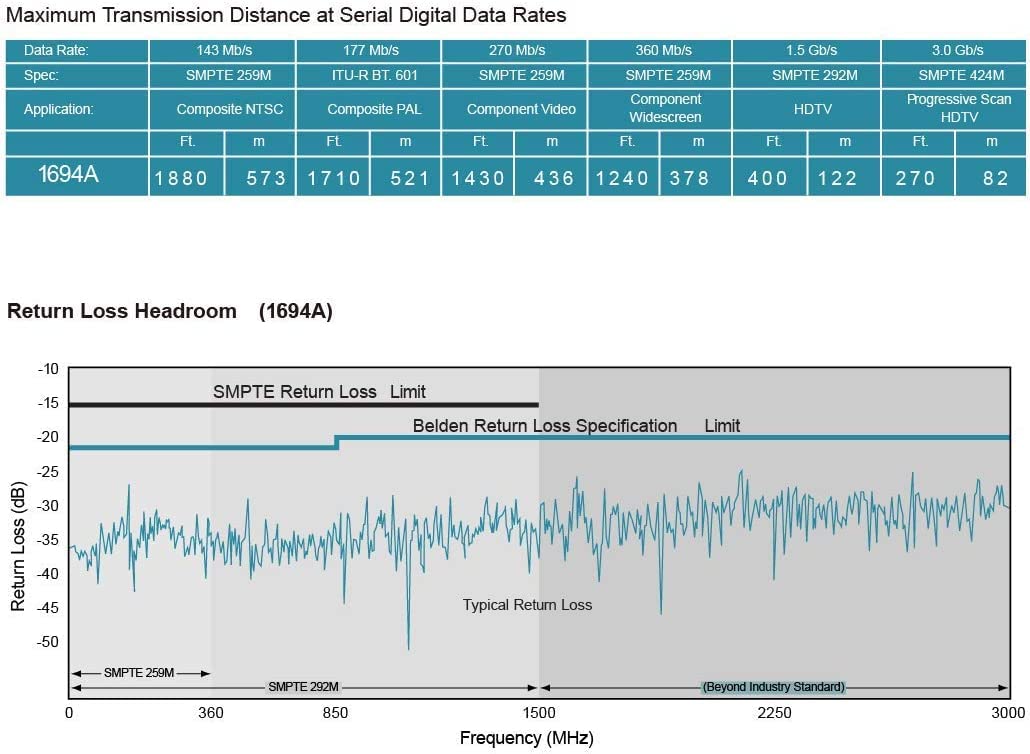

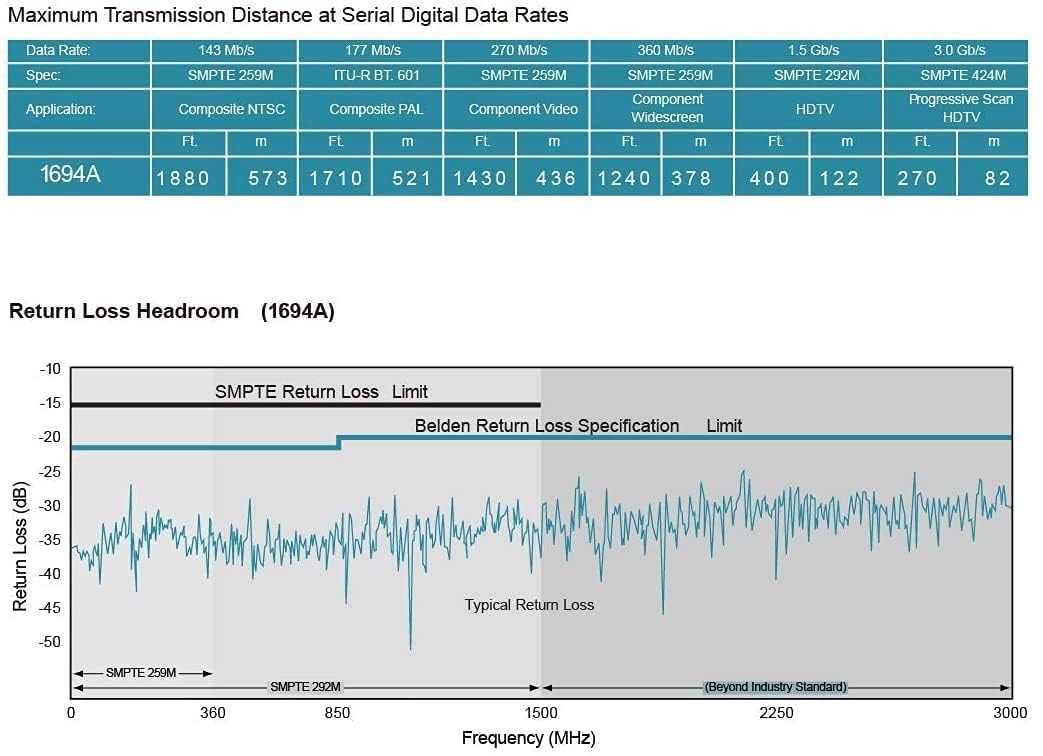

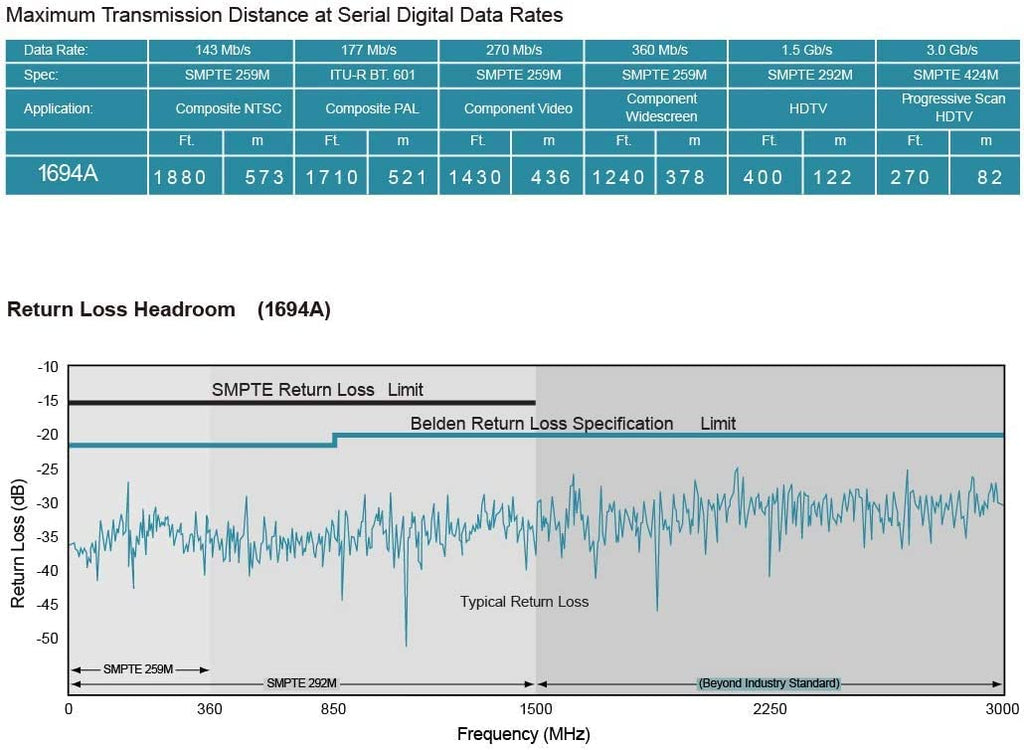

Serial Digital Data Rates
- Standard Definition SD-SDI (270 Mbps, ST 259)
- HD standard HD-SDI (1.483 Gbps, ST 292)
- 3G-SDI (2.97 Gbps, ST 424)
- 6G-SDI (5.94 Gbps, ST 2081)
- 12G-SDI (11.88 Gbps, ST 2082)

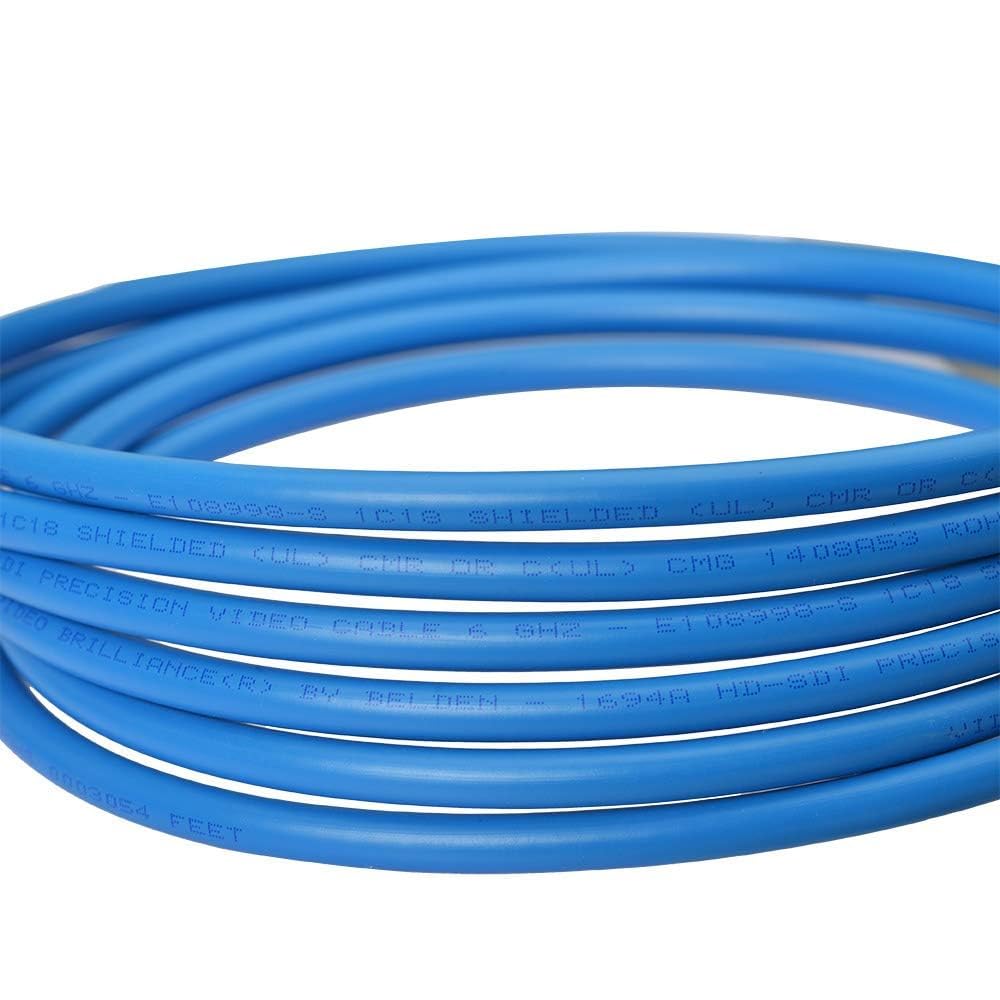

- Belden 1694A Low Loss Serial Digital Coaxial Cable is an RG6 coax designed to carry several video signals including analog, 4x3 digital (SD-SDI), high definition (HD-SDI) and even 3gig (1080p/50 or 1080p/60). The center conductor is made from true 75 Ohm 18AWG solid copper.
- This cable is 100% sweep tested and is ready to meet today’s requirements of 6 Gbps data transfer.can be used in professional broadcast applications.

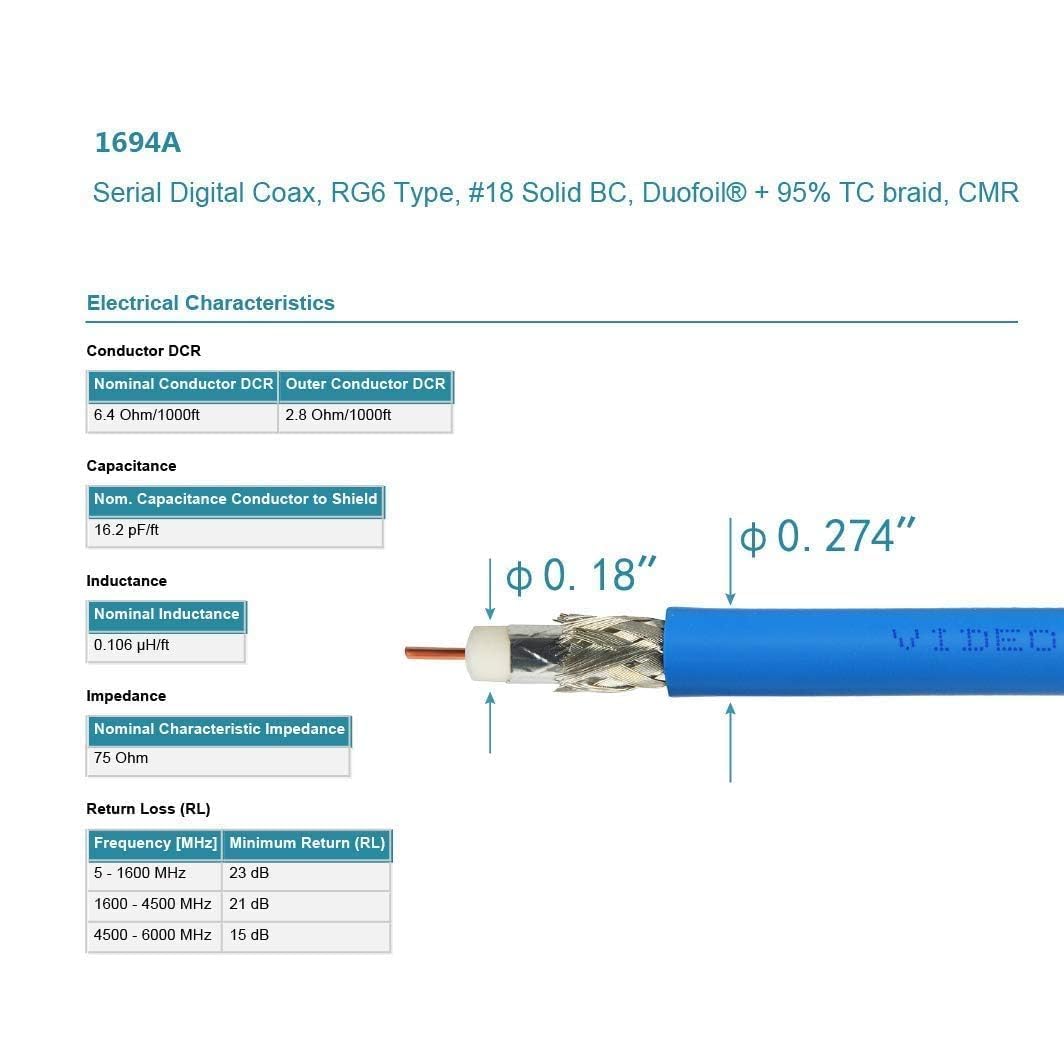

- Center conductor: 0.40" dia. bare copper
- Dielectric: 0.180" dia. foamed PE

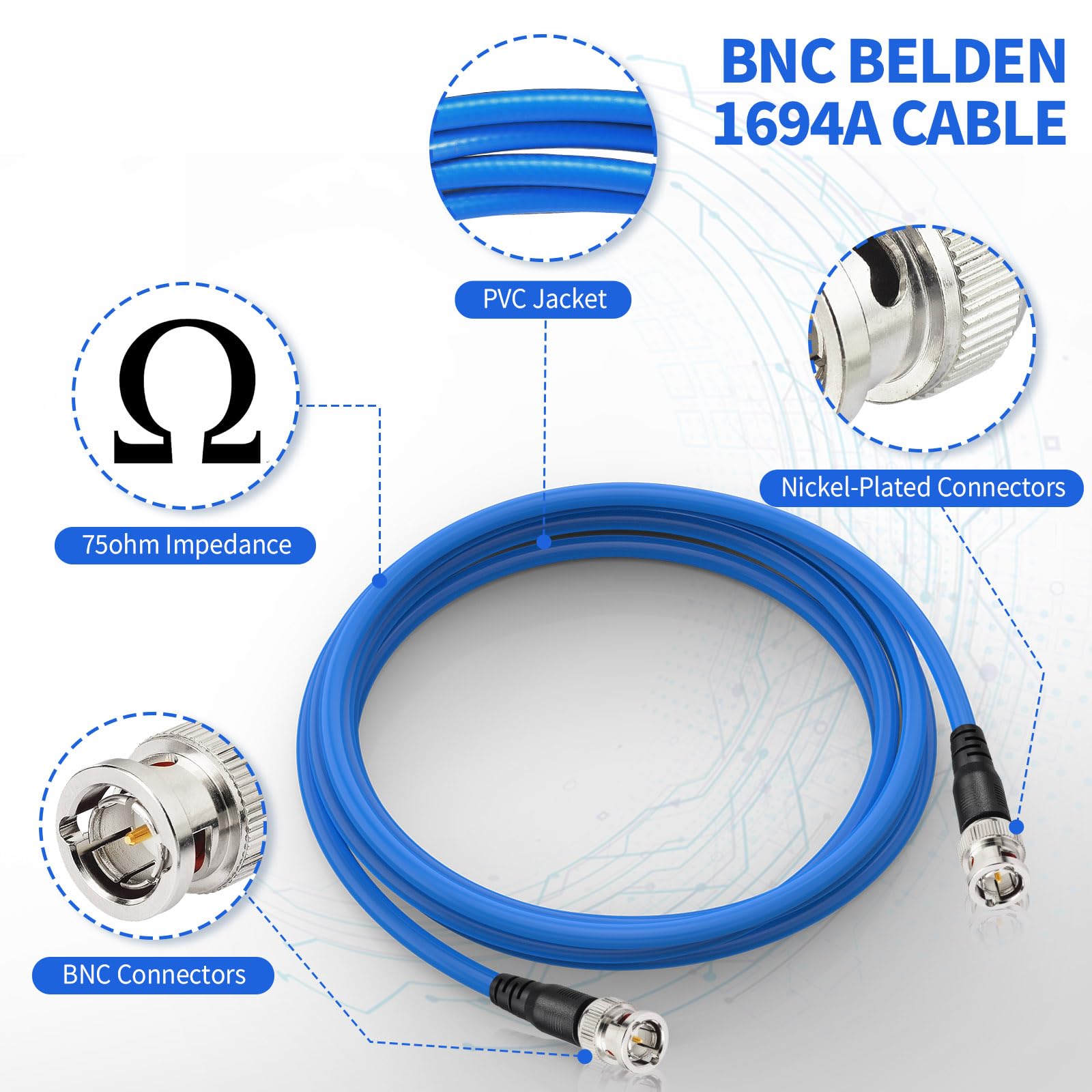

- Shield: 100% aluminum foil/polyester tape/aluminum foil and 95% coverage tinned copper - give them maximum protection from EMI and RFI,for excellent noise rejection
- PVC outer jacket - for durability and long-term protection.

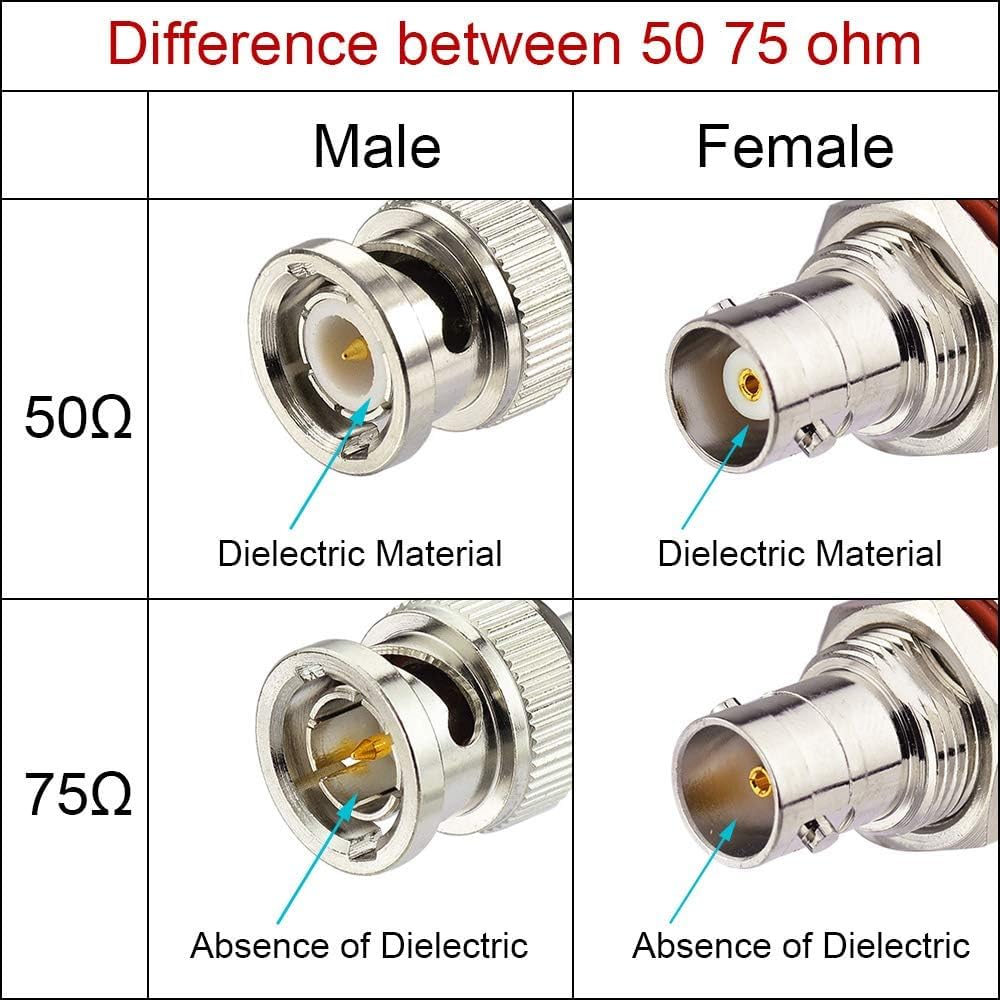

- 50 Ohm BNC connectors are used with 50 Ohm cables. 75 Ohm connectors are used with 75 Ohm cables.
- 50-ohm cables/connectors work well with old analog video formats. If you are looking for high-quality video output, 50 Ohm will not give you a high-quality level.
3G/6G/12G SDI BNC Cable
|
3G/HD SDI Cable BNC Cable bnc Male to male extension Coaxial Cable 1pcs
|
3G SDI 6G-SDI Cable BNC Cable Thin Short bnc Male to male Cable
|

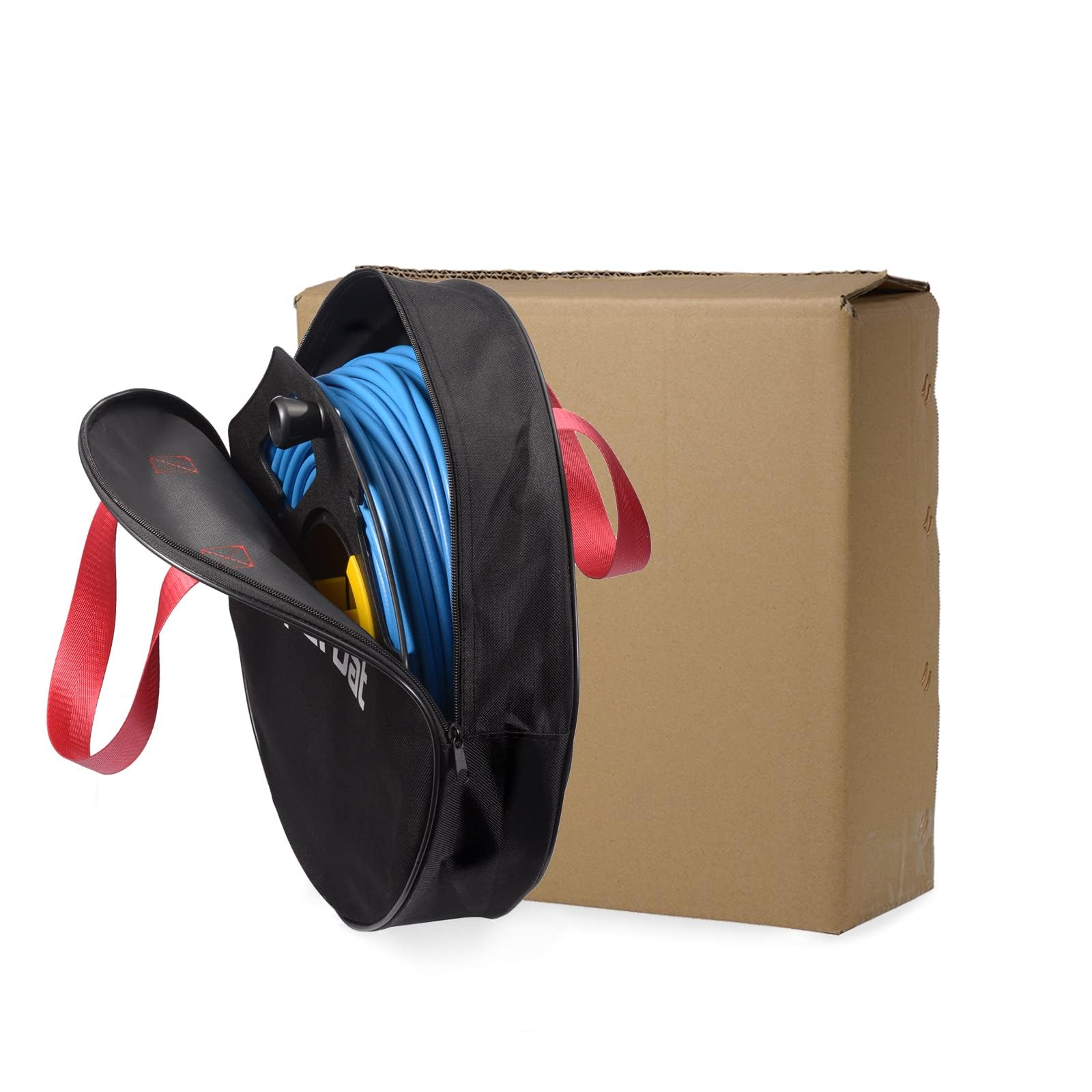

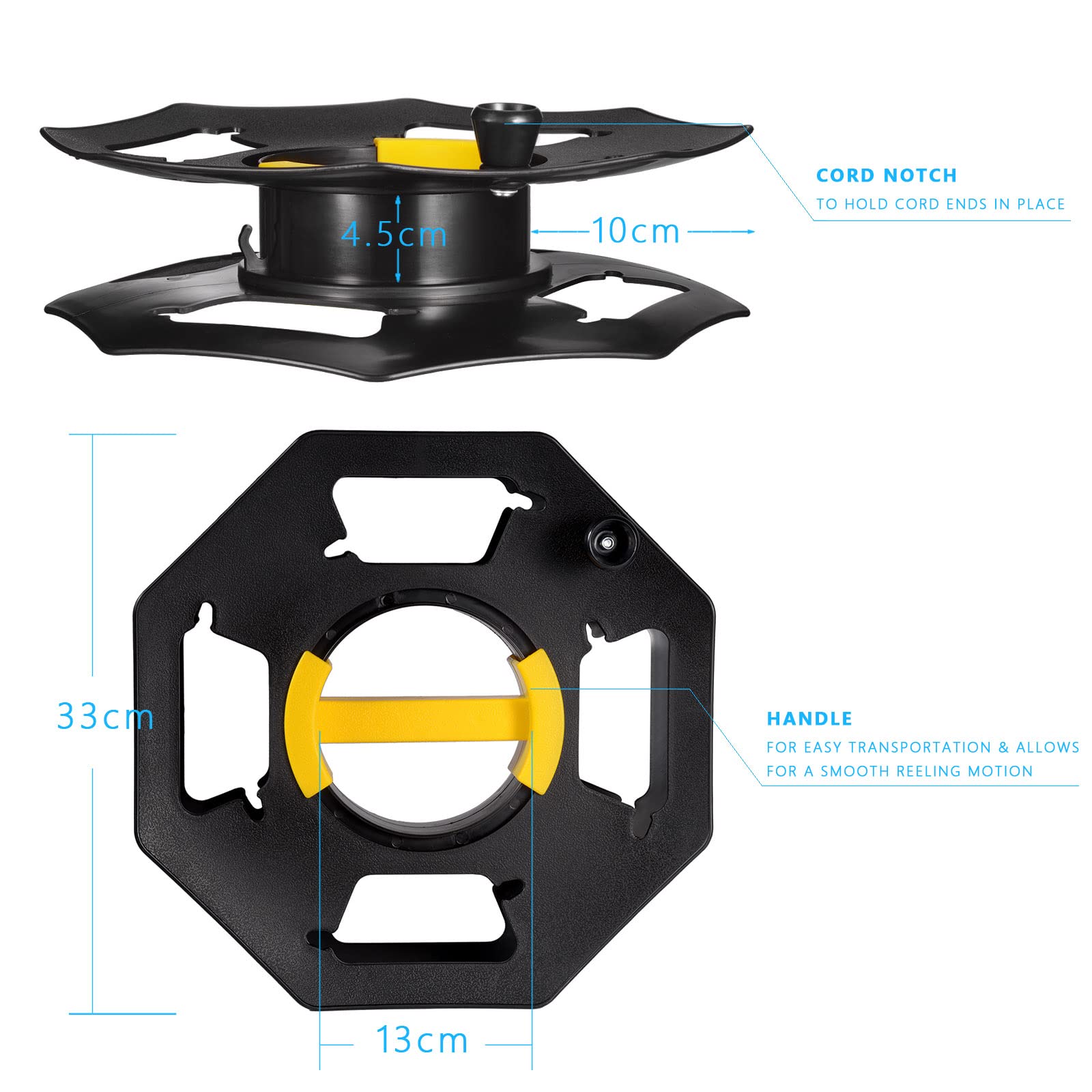

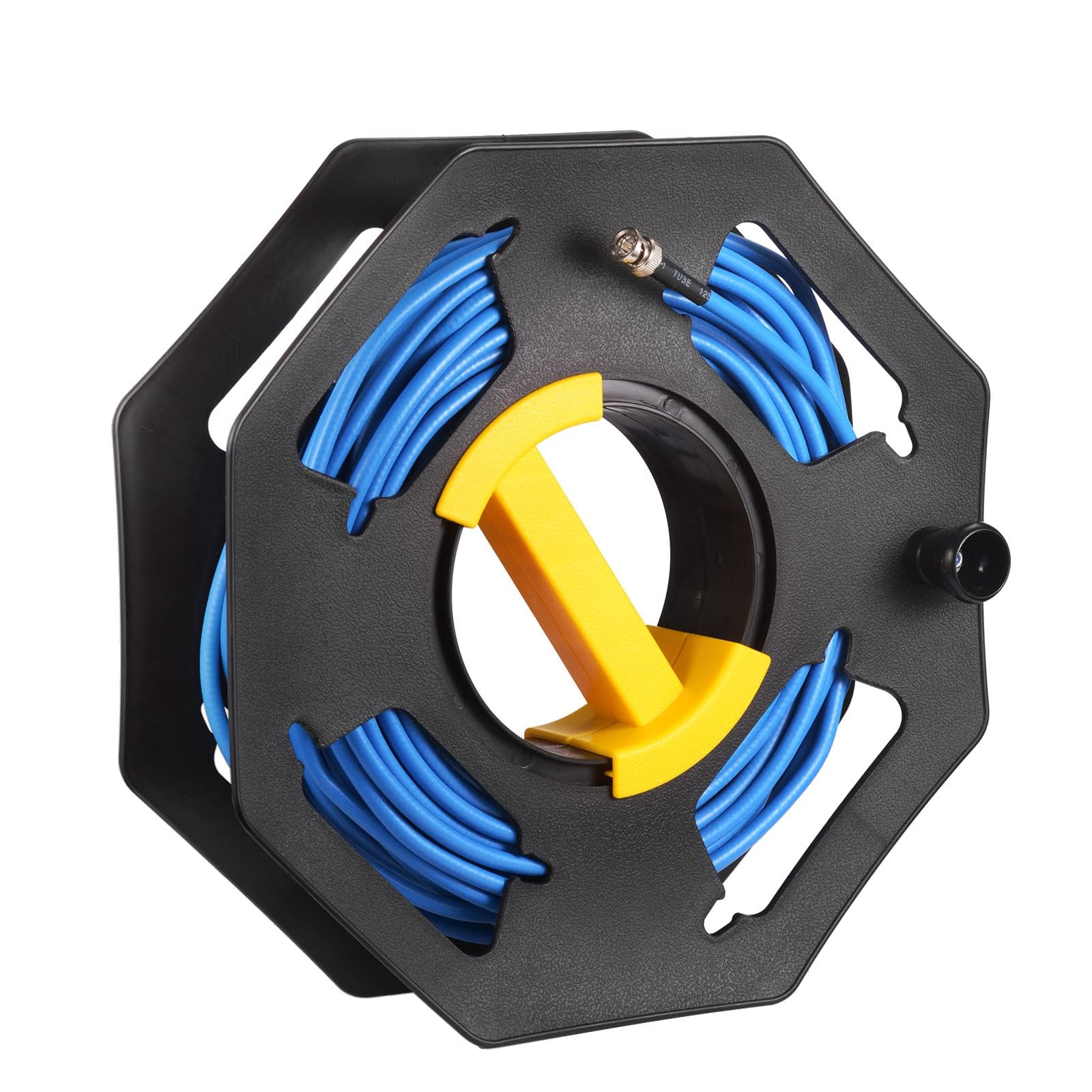

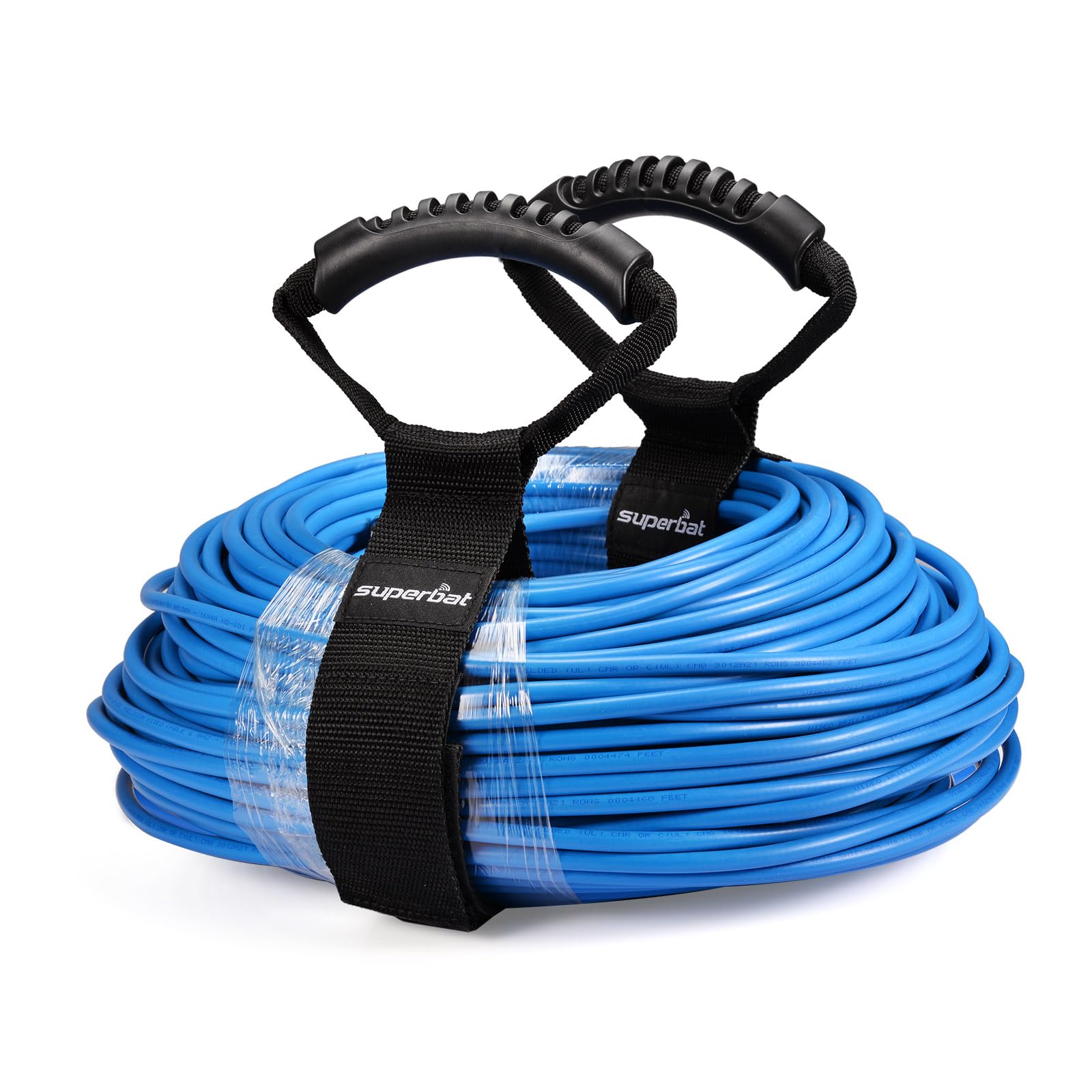

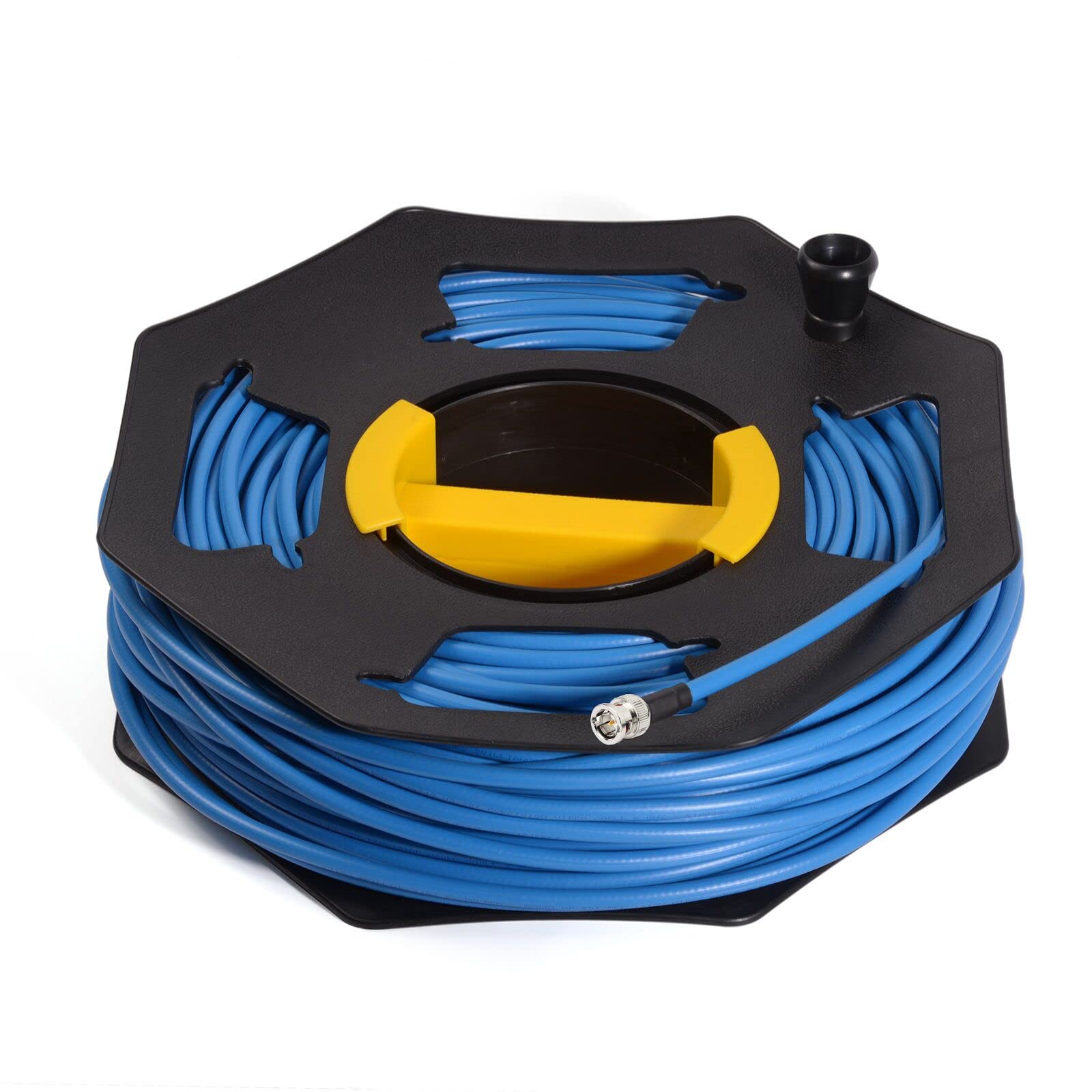

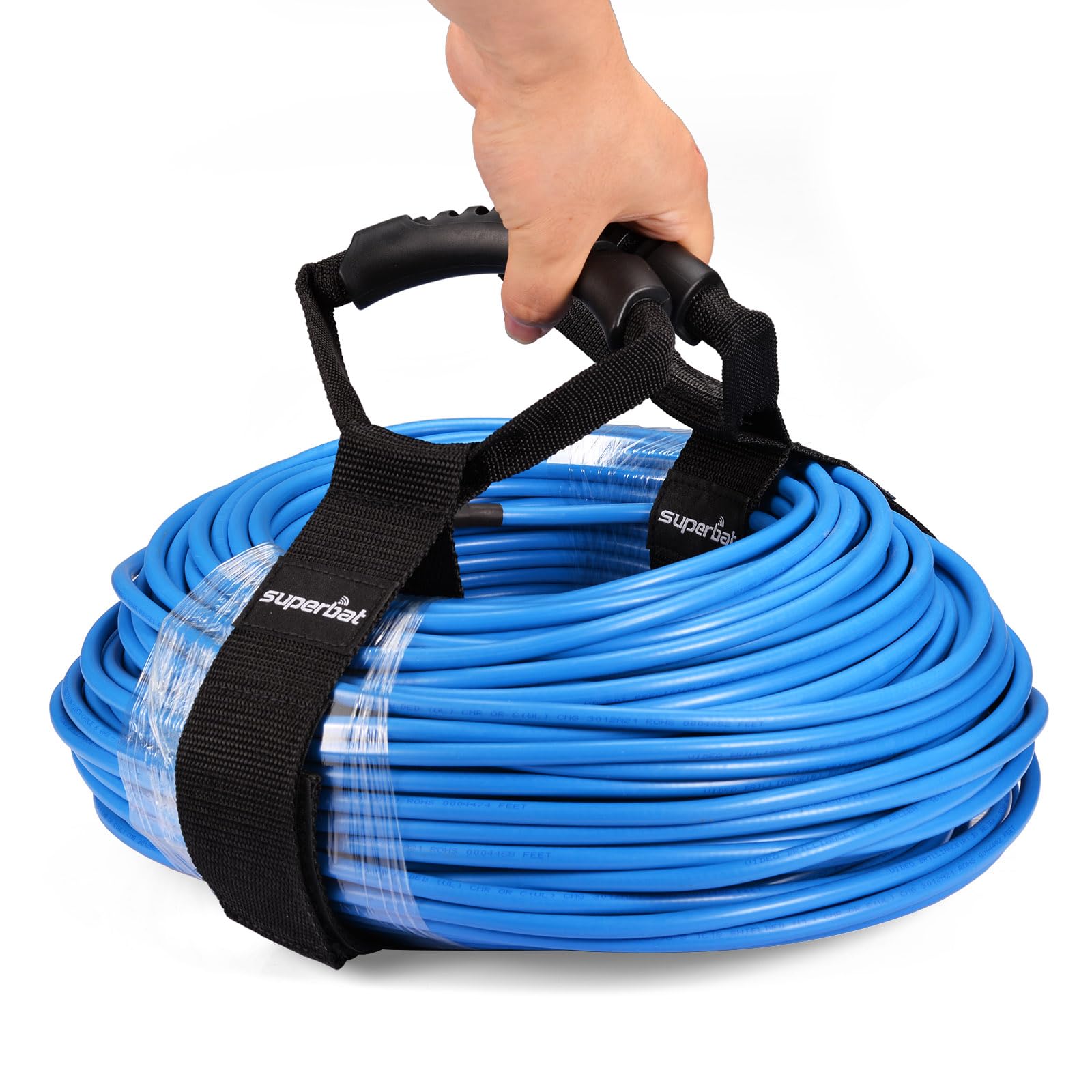

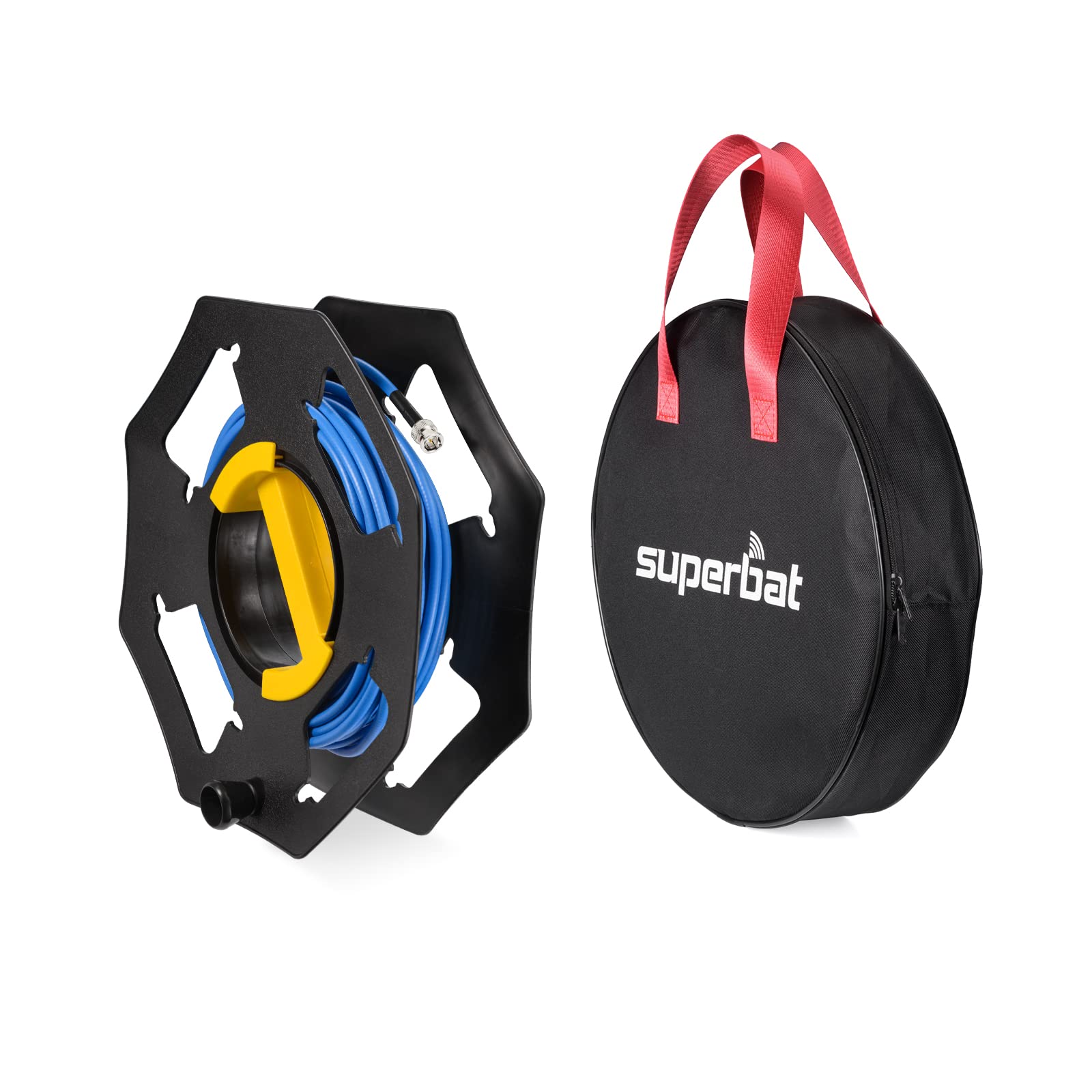

Long 6g sdi cable BNC Coaxial Cable + Cord Reel
|
BNC Cable 3G/HD SDI Cable Coil Cable 75ohm BNC to BNC Extension Cable
|

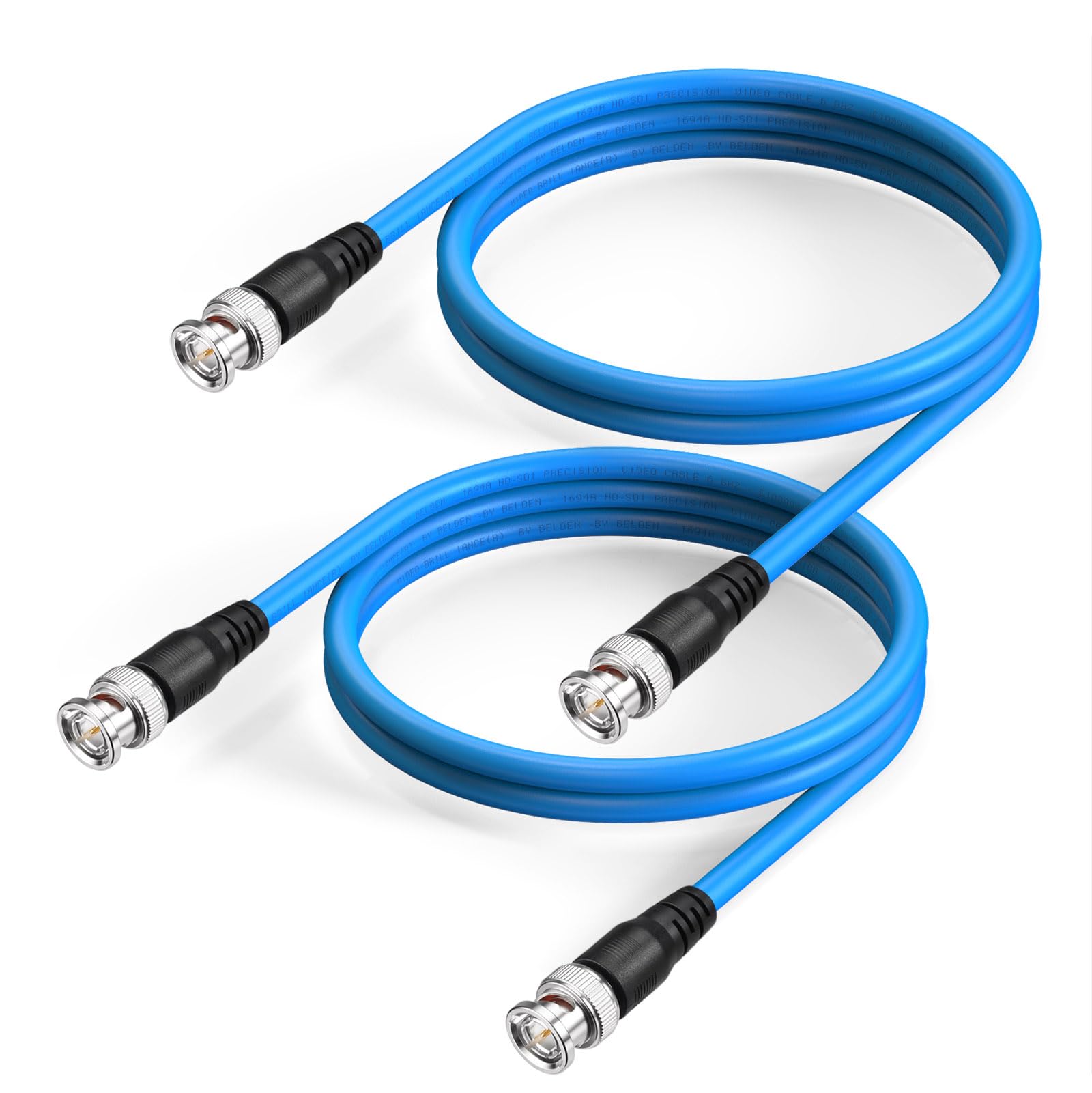

3G/HD SDI Cable BNC Cable bnc Male to male extension Coaxial Cable 2pcs
|
|
|---|---|---|---|---|---|---|
| Customer Reviews |
643
|
396
|
164
|
17
|
99
|
457
|
| Price | $23.49 | $6.99 | $11.99 | $219.00 | $14.40 | $11.47 |
| Cable type | Belden 1694A | RG179 coax cable | Belden 1855A | Belden 1694A | 3C-2V A/V Cable | RG179 coax cable |
| Length | 1FT/2FT/3FT/10FT/15FT/30FT /50FT/75FT /100FT | 12inch / 20inch /3ft /6ft | 12inch /3FT/6.5FT | 50ft / 100ft / 150ft /200ft | 3 ft | 12inch /3ft |
| Support | SD-SDI/HD-SDI /3G-SDI/6G-SDI | Supports HD-SDI/3G-SDI/4K/8K，SDI Video Cable | SD-SDI/HD-SDI /3G-SDI/6G-SDI | for HD-SDI/3G-SDI/6G-SDI/ 4K/8K，SDI Video Cable | SD-SDI/HD-SDI /3G-SDI | Supports HD-SDI/3G-SDI/4K/8K，SDI Video Cable |
BNC Cable 3G 6G SDI Cable
|
Long 3G 6G SDI Cable BNC Cable + SDI Cable Reel
|
BNC Cable 3G 6G SDI Cable
|
Short 12G SDI Cable 4K Thin BNC Cable
|
Long 12G SDI Cable BNC Cable + SDI Cable Reel
|
|
|---|---|---|---|---|---|
| Customer Reviews |
5
|
6
|
38
|
26
|
2
|
| Price | $59.99 | $219.00 | $99.79 | $18.99 | $379.00 |
| Cable type | Belden 1694A Multi-coloured | Belden 1694A blue | Belden 1694A Black | Belden 4855R | Belden 4694R |

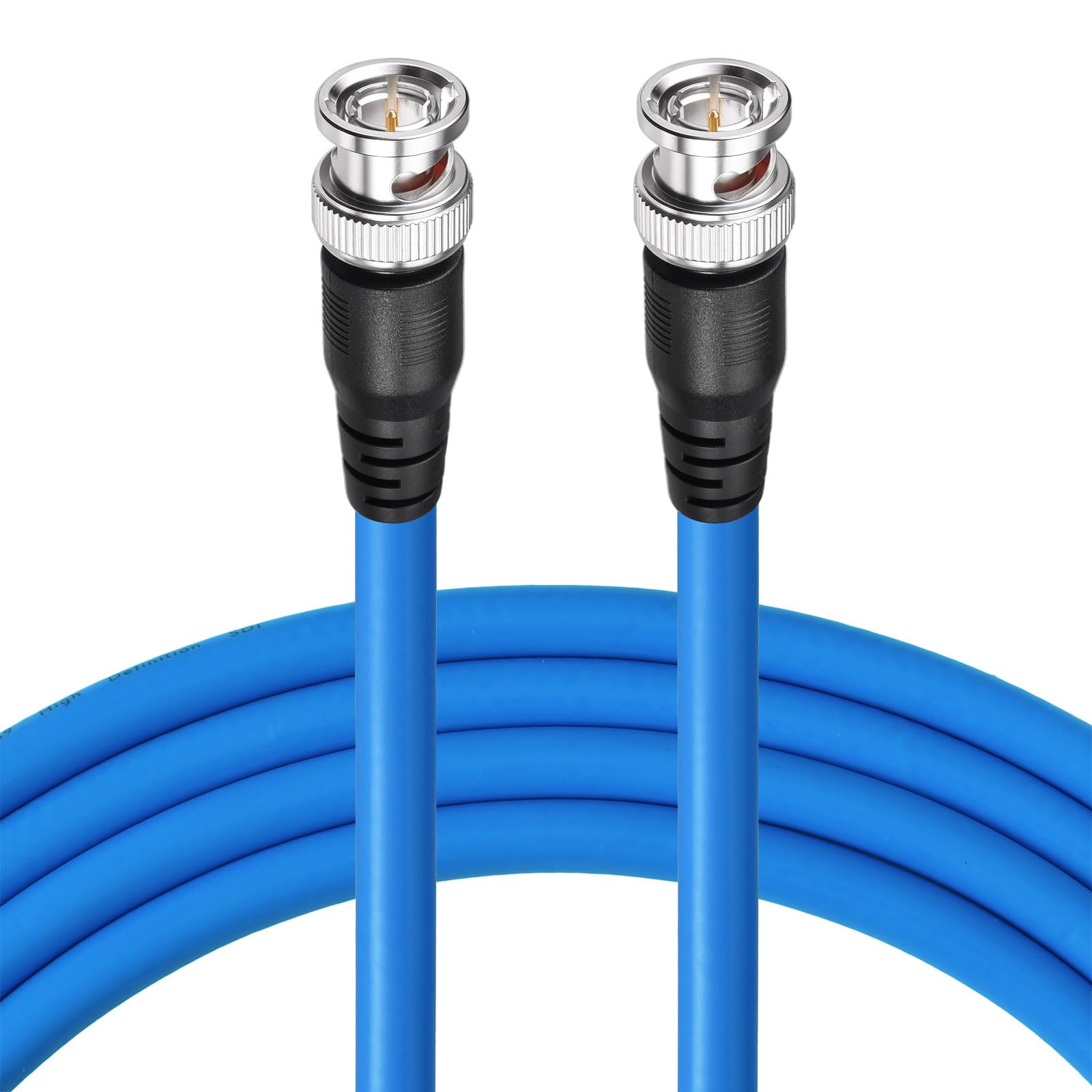

- 3G/6G/12G/HD-SDI Cable BNC to BNC Digital Video Cable(Belden 1694A;25 feet)

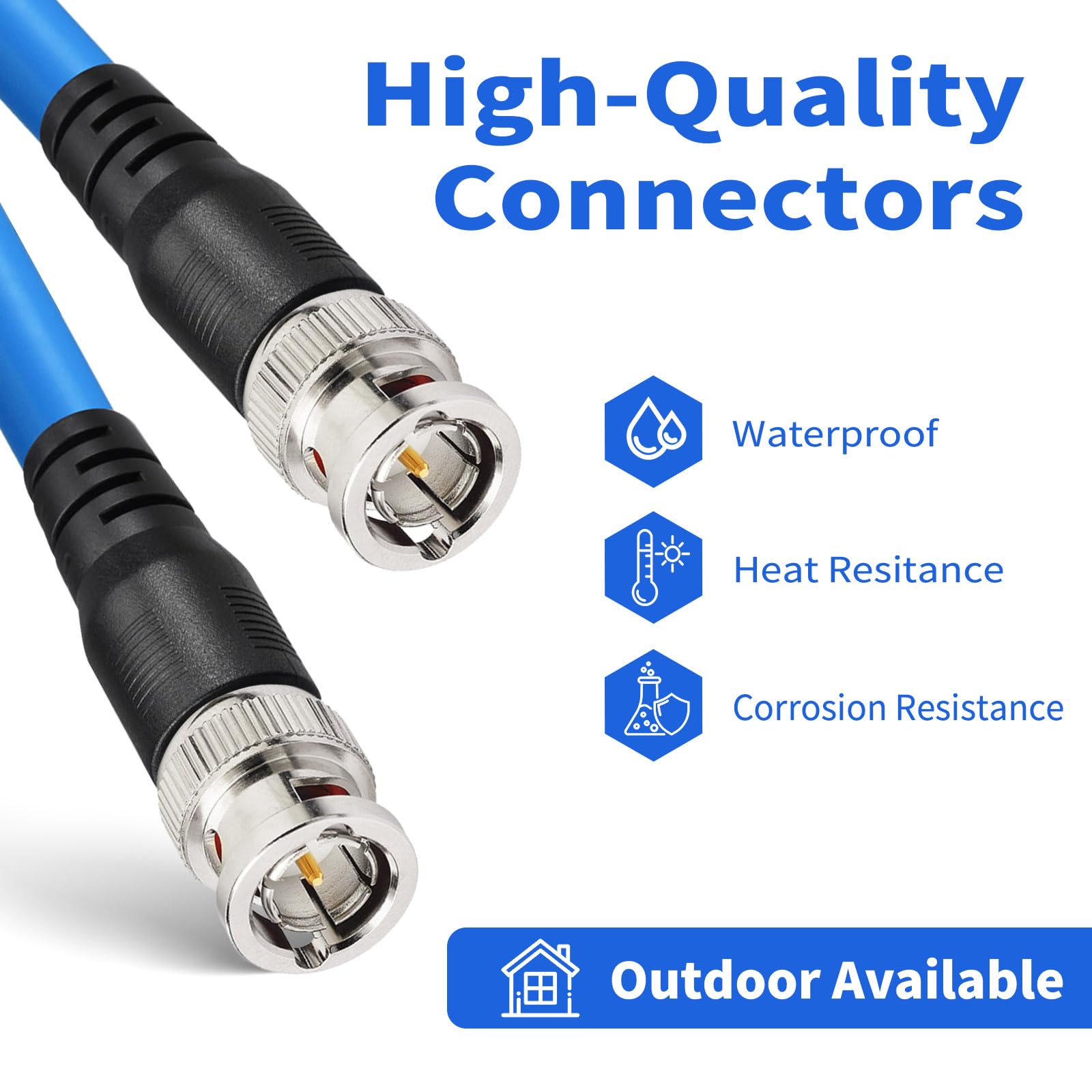

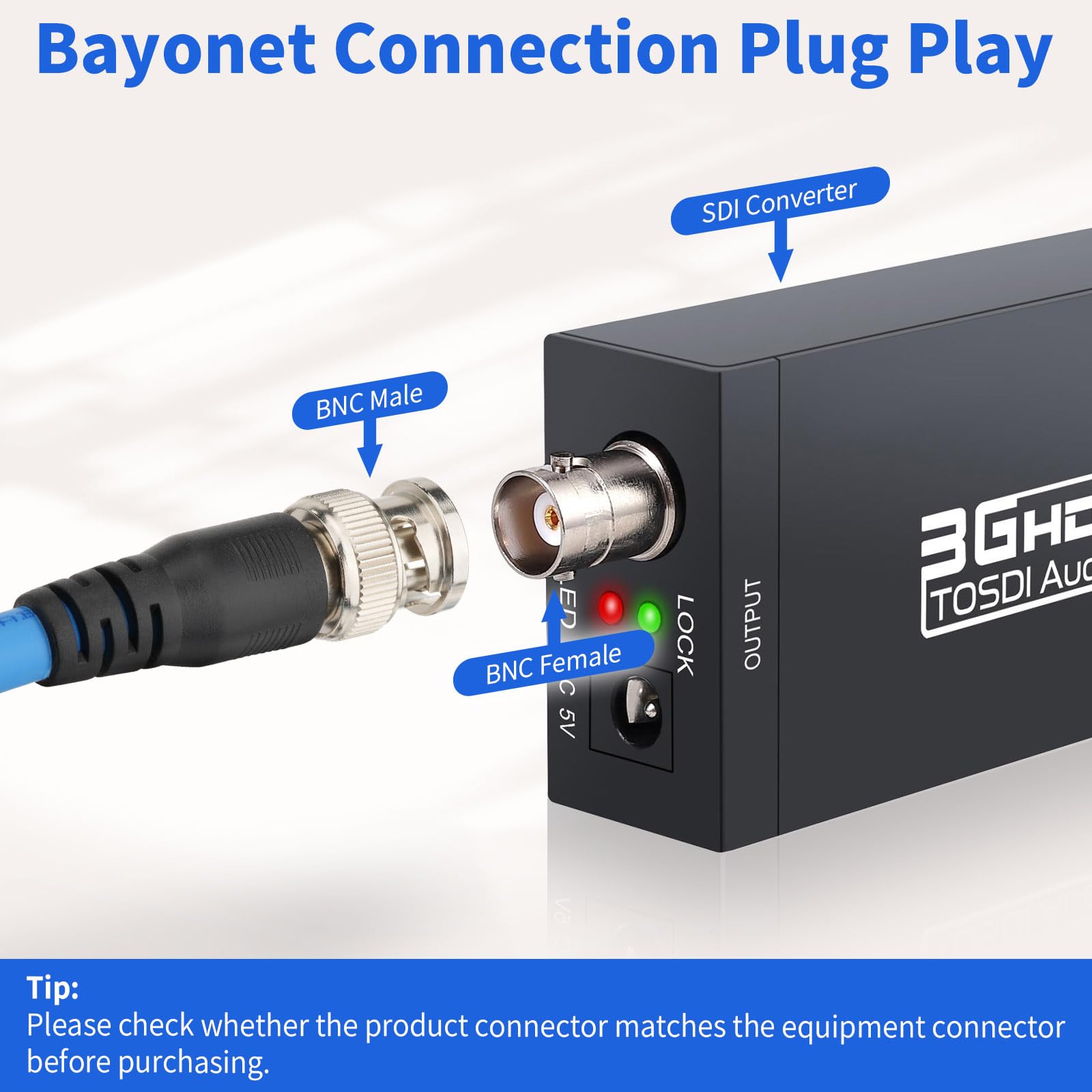

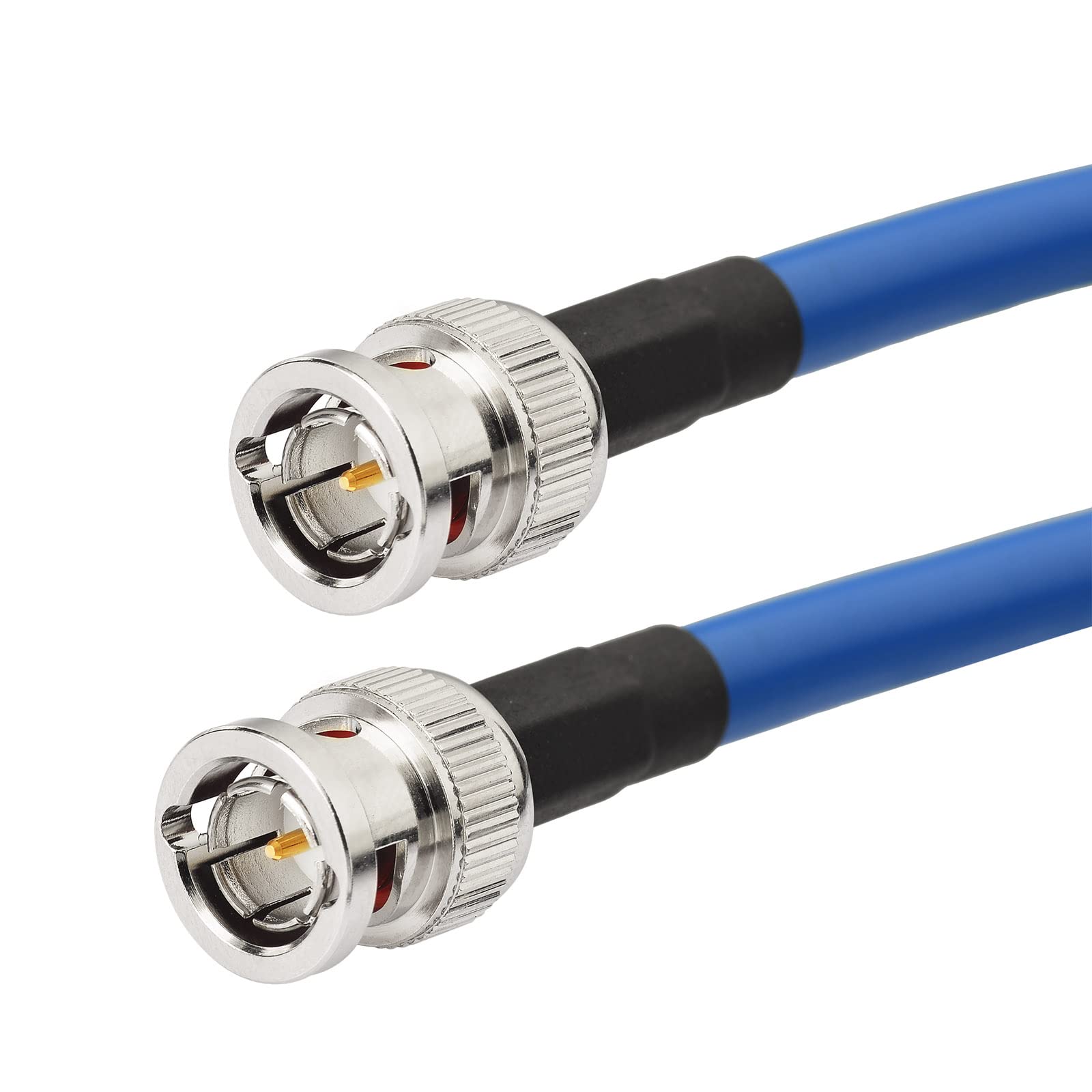

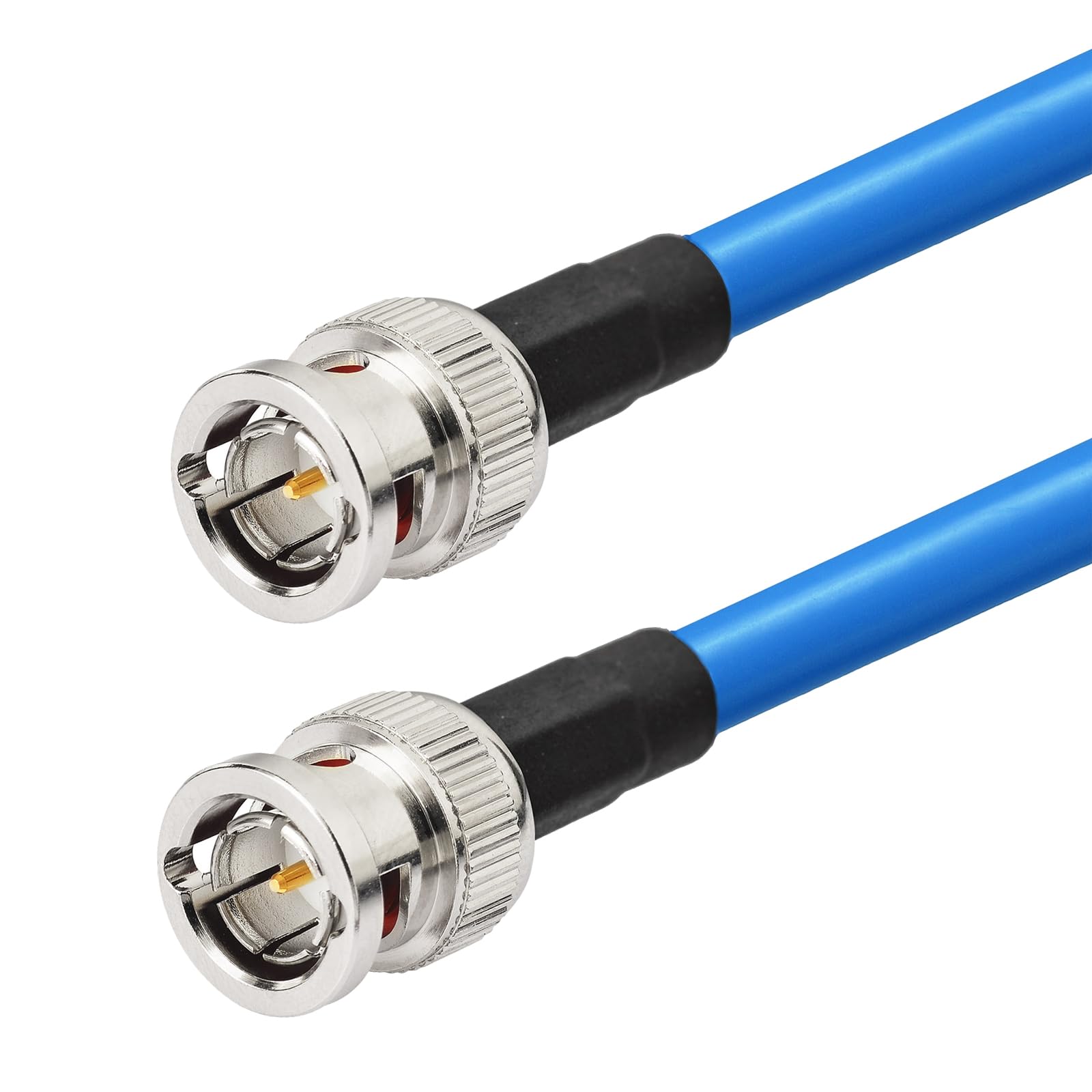

- Specifications: Both ends BNC male (plug) | Connector: Gold plated | Impedance: 75 Ohm | Cable Type: Belden 1694A;18 AWG|Standard Definition SD-SDI (270 Mbps, ST 259) HD standard HD-SDI (1.483 Gbps, ST 292)3G-SDI (2.97 Gbps, ST 424) 6G-SDI (5.94 Gbps, ST 2081) 12G-SDI (11.88 Gbps, ST 2082)
- BELDEN 1694 PRECISION SERIAL DIGITAL VIDEO COAXIAL CABLE: features exceptionally low attenuation and a 4.5 GHz Bandwidth in an RG6 type coax cable. Featuring RG-6/U type, 18 AWG solid .040" bare copper conductor, Gas-injected FHDPE - Foam High-Density Polyethylene + tinned copper braid shield (95% coverage tinned copper braid combined with Duofoil foil/poly/foil 100% shield), PVC - Polyvinyl Chloride.

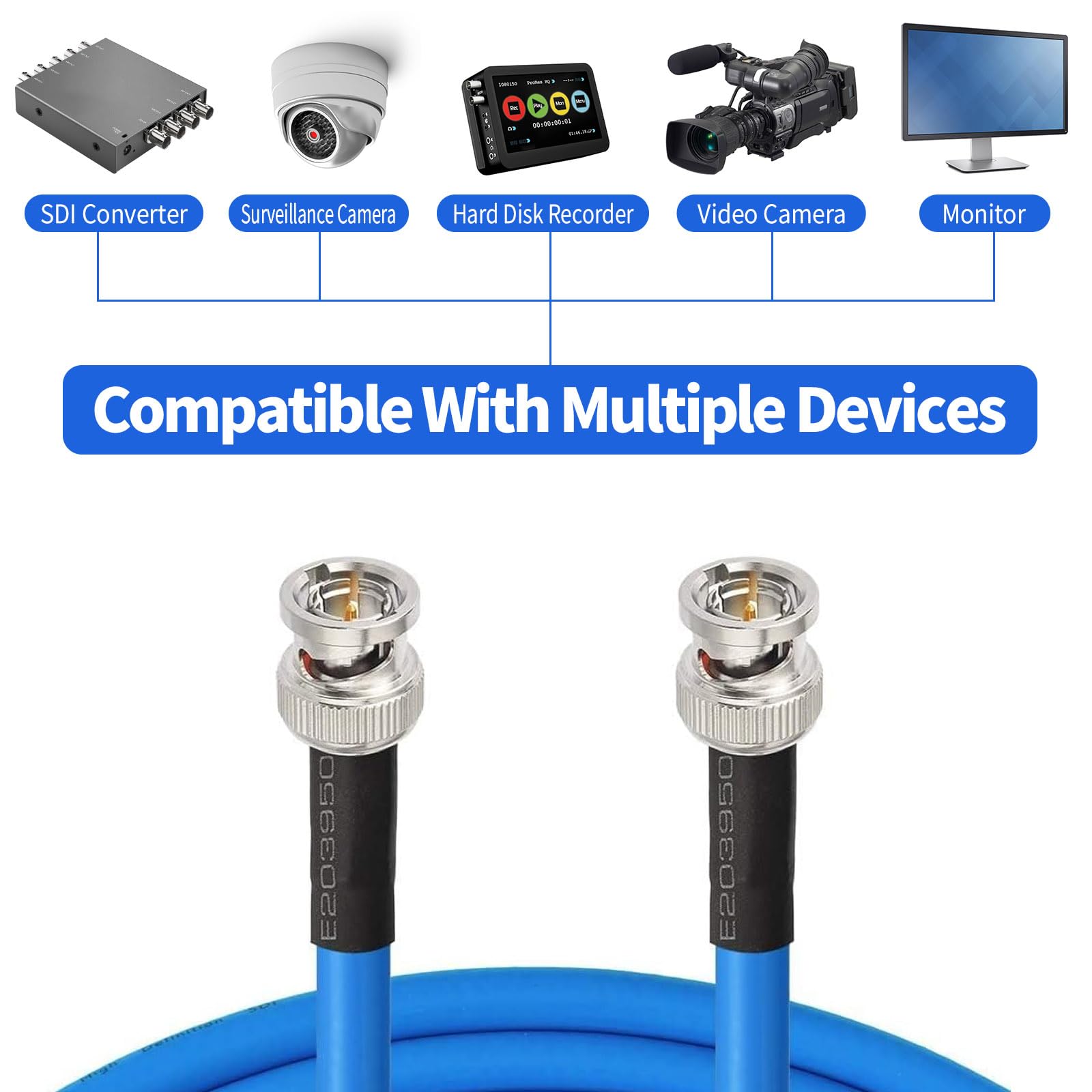

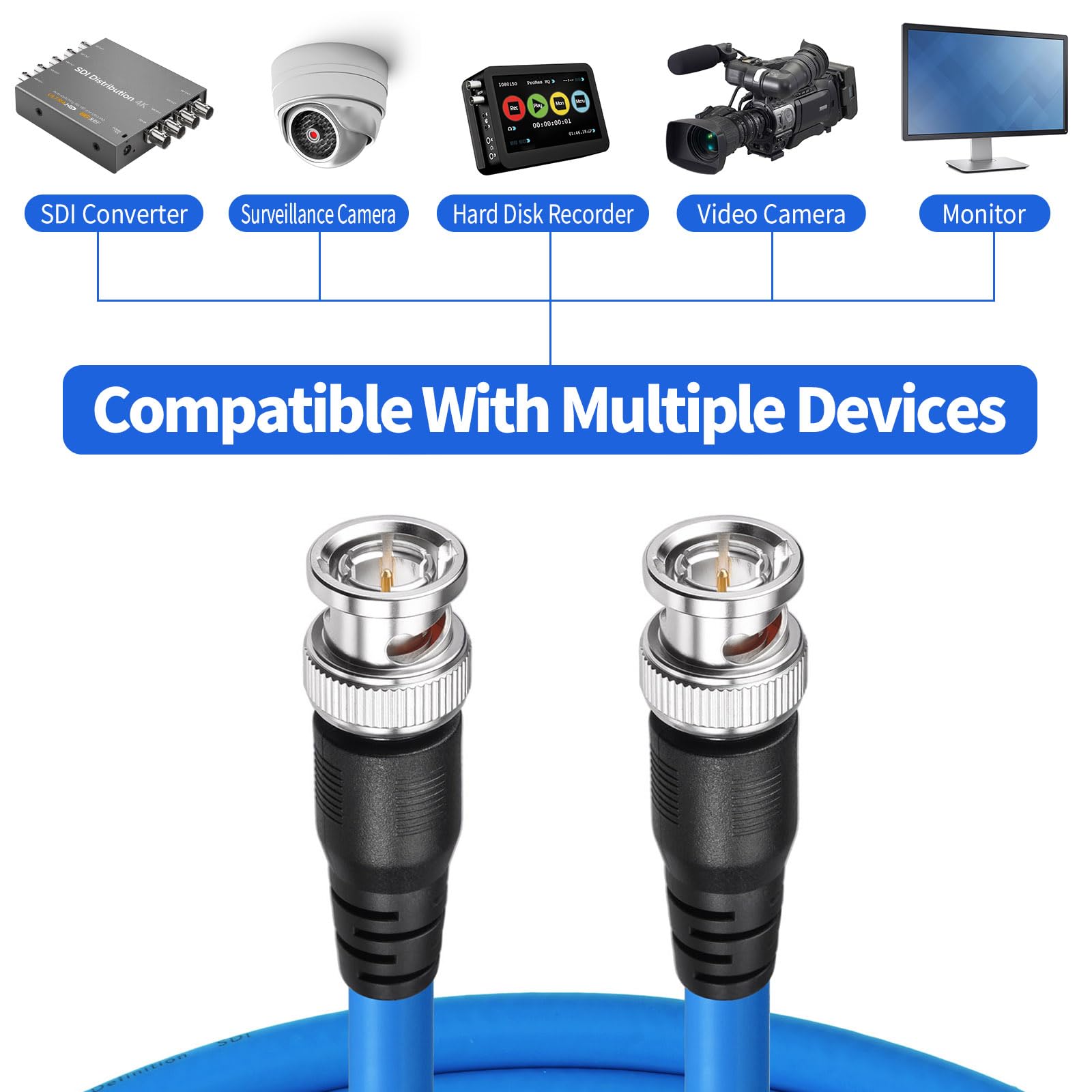

- Is suitable for HDTV and professional SDI applications: Supports HD-SDI, 3G-SDI, component, composite, MADI, WORD CLOCK, SYNC, etc.This shielded coaxial cable is compatible with a wide variety of popular software, including Blackmagic, AJA, Grass Valley, Evertz, Marshall, Cobalt Digital, Atomos, Postium, AVID, and Decimator. Our HD-SDI cable is great for use in HD-serial digital video transfer,HDTV upgrades, broadband facilities, and other applications with HD-SDI video.
- Never worry about any security problems. We are confident in the quality of our cable and willing to provide 1 MONTHS Replacement Warranty and 100% Satisfaction Guarantee. If you unfortunately get a defective one, please contact our customer support.
| Brand | Superbat |
| Connector Type | BNC |
| Cable Type | Coaxial, Component, Composite |
| Compatible Devices | Television |
| Special Feature | Data Transfer |
